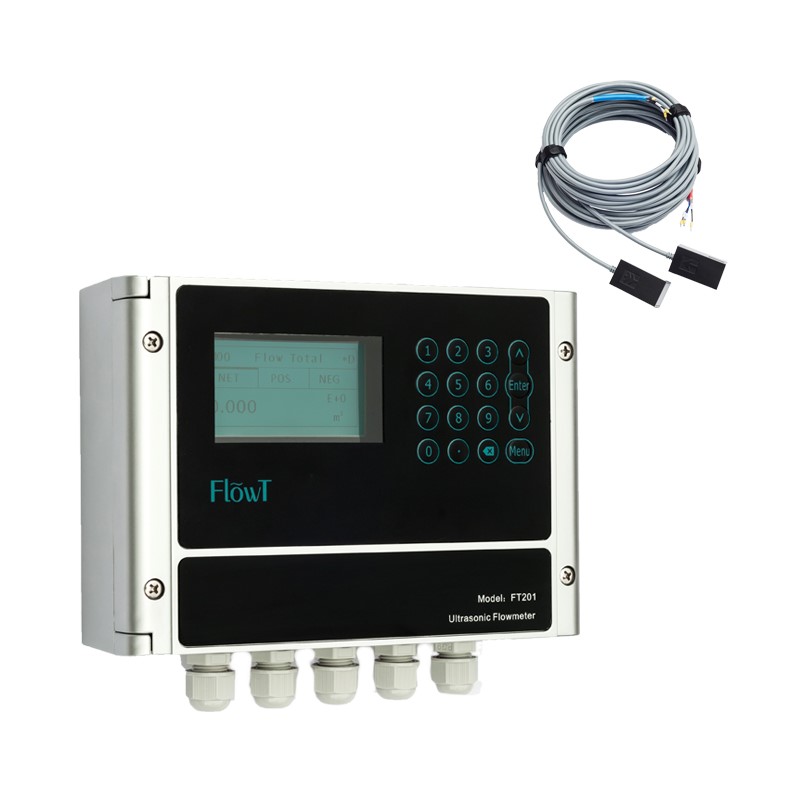

FlowT FT201 Ultrasonic Flow Meter (±0.09ft/s ~ ±16ft/s)

Performance

Flow range: ±0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s)

Accuracy: ±1% of measured value

Repeatability: 0.2% of measured value

Linearity:  ±1%

Pipe size: 1"to 48" (25mm to 1200mm).Pipe size under 1” is an option

Fluid: Water


Function

Outputs:  Analog output: 4~20mA, max load 750Ω.

                Pulse output: 0~10KHz

Communication: RS232/RS485 Modbus

Power supply:  10~36VDC/1A

Display:  240*128 back lit LCD

Temperature: Transmitter: -14℉~140℉(-20℃~60℃)

                      Transducer:-40℉~266℉(-40℃~130℃,standard -40℃~75℃)

Humidity: Up to 99% RH,non-condensing


Physical

Transmitter: PC/ABS,IP65

Transducer:  ABS,IP68

                     Encapsulated design

                     Double-shielded transducer cable

                     Standard/maximum cable length:30ft/900ft(9m/274m)
