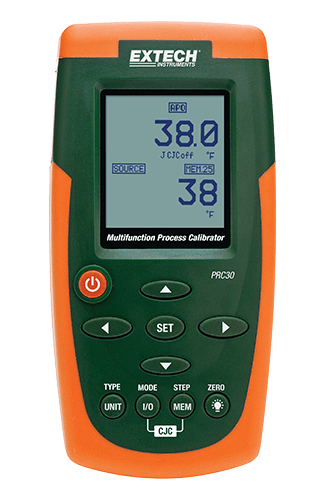

EXTECH PRC30 多功能过程校准器

- DC Source

+ Current: 0 to 24mA, -25% to +125% /±(0.01% + 1 digit)

+ Max:. Load 1000Ω @ 24mA

+ Voltage: 0 to 2000mV, 0 to 20V /±(0.01% + 1 digit)

+ mV/Temp: -5 to 55mV ±(0.01% + 1 digit)

+ Type J: -58 to 1832°F (-50 to 1000°C) /±(0.05% + 2°F or 1°C)

+ Type K: -58 to 2498°F (-50 to 1370°C) /±(0.05% + 2°F or 1°C)

+ Type T: -184 to 752°F (-120 to 400°C) /±(0.05% + 2°F or 1°C)

+ Type E: -58 to 1382°F (-50 to 750°C) /±(0.05% + 2°F or 1°C)

+ Type C, R, S: 32 to 3182°F (0 to 1750°C) /±(0.05% + 2°F or 1°C)

+ Type N: -58 to 2372°F (-50 to 1300°C) /±(0.05% + 2°F or 1°C)

DC Measure

+ Current: 0 to 50mA, -25% to +230%  /±(0.01% + 1 digit)

+ Voltage: 0 to 1999mV / 2 to 20V /±(0.01% + 1 digit) / auto range

+ mV/Temp: -10 to 60mV /±(0.01% + 1 digit)

+ Type J: -58 to 1832°F (-50 to 1000°C) /±(0.05% + 1.8°F or 1°C)

+ Type K: -58 to 2498°F (-50 to 1370°C) /±(0.05% + 1.8°F or 1°C)

+ Type T -184 to 752°F (-120 to 400°C) /±(0.05% + 1.8°F or 1°C)

+ Type E: -58 to 1382°F (-50 to 750°C) /±(0.05% + 1.8°F or 1°C)

+ Type C, R, S: 32 to 3182°F (0 to 1750°C) /±(0.05% + 2°F or 1°C)

+ Type N: -58 to 2372°F (-50 to 1300°C) /±(0.05% + 2°F or 1°C)

+ Loop Power 24V

Meter Dims (LxWxH) 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)

Meter Wt  8.4oz (236g) - not including battery weight

Manual

Catalog

Features:

• 0 to 24mA (-25 to 125%) readout
• 24V DC power source for 2-wire current loop
• 0 to 20V DC calibration source
• Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
• CJC - Cold Junction Compensation function
• Up to five user adjustable calibration presets
• Palm-sized double molded housing and large dot-matrix backlit LCD
• High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
• Displays output in terms of millivolts or temperature based on thermocouple tables
• Zero adjustment, auto zero when power on and change mode
• Standard banana I/O ports and mini thermocouple connector
• Large battery bank for extended work cycle
• External power adapter for continuous work cycle
• Complete with test leads, alligator clips, calibration cables, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case
