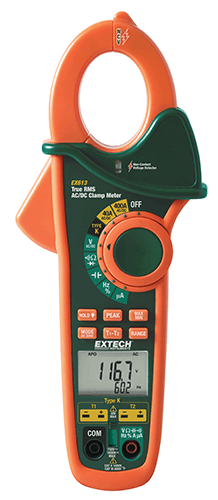

EXTECH EX613 400A双输入钳表和NCV(AC / DC电流) (400A)

AC Current: 400.0A

DC Current: 400.0A

Max resolution: 10mA

Basic ACA accuracy: ±1.5%

AC/DC Voltage (Max Res.): 600V (0.1mV)/600V (0.01mV)

DC μA Current:4000μA (0.01μA)

Resistance (Max Res.): 40.000MΩ (0.01)

Capacitance (Max Res.): 10pF to 40,000μF (0.01nF)

Frequency (Max Res.): 40MHz (0.001Hz)

Temperature (Type K): -58 to 1832°F (-50 to 1000°C)

Diode Test: < 2.8V

Duty Cycle: 0.5 to 99.0%

Dimentions: 9x3.1x1.9" (229x80x49mm)

Weight: 10.7oz (303g)

Complete with CAT III-600V, double molded test leads, 9V battery, two general purpose Type K bead wire probes and case
