Extech EX530-KIT 工业多米表测试套件,带电压检测器

IP 67

True RMS

Display: counts 4000

Basic Accuracy (DCV): 0.06%

DC Voltage: 0.1mV to 1000V

AC Voltage: 1mV to 1000V

Non-Contact AC Voltage: 100V to 600V

DC/AC Current: 0.1μA to 20A

Resistance: 0.1Ω to 40MΩ

Frequency (electrical): 0.01 to 100Hz

Frequency (electronic): 0.001Hz to 40MHz

Capacitance: 0.001nF to 40mF

Temperature (Type K): (-45 to 750°C)

4 to 20mA: 0 to 125%

Duty Cycle: 0.1 to 99.90%

Peak Hold: yes

Diode : yes

Continuity: yes

Dimensions/Weight: 7.25x3.25x2.25"/12.3oz

Meter with double molded test leads, magnetic hanging strap, Type K bead wire temperature probe, carrying case, and one 9V battery. Also includes a set of  CAT III-100V Electrical Test Lead kit TL810

Manufacturer: Extech USA



EX530 Features:

  • Double molded for waterproof (IP67) protection
  • Rugged design — drop proof to 6 feet
  • High Resolution display:
     •  Model EX520-S with 6000 count LCD display
     •  Model EX530-KIT with 40,000 count LCD display
  • 1000V input protection on all functions
  • Dual sensitivity frequency functions
  • Large backlit LCD with bargraph
  • Duty Cycle function and Diode open circuit voltage of 2.8V DC
  • Auto power off with disable feature and Min/Max, Relative, and Data Hold functions
  • CE/UL approved; CAT IV-600V

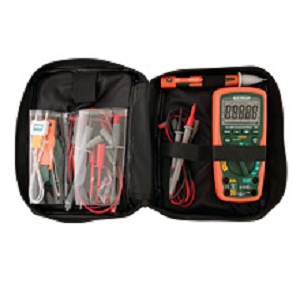

Kit Includes:

  • EX530 CAT IV True RMS Industrial Autoranging Digital MultiMeter (40,000 count)
  • DV20 Non-Contact AC Voltage Detector (100V to 600V) with built-in Flashlight
  • TL810 Electrical Test Lead Kit (8 pcs)
  • TL873 Type K Thermocouple bead probe (-22 to 572°F (-30 to 300°C))
  • Hanging strap with magnet
