EXTECH CT40 高性能电缆标识符/测试仪套件


Display Counts: 2,000 count

Basic Accuracy: 1.0%

DC/AC Voltage: 0.1mV to 600VDC /1mV to 600VAC

DC/AC Current: 0.1μA to 200mA

Resistance: 0.1Ωto 20MΩ

Diode/Continuity: Yes

Dimensions: 6.3x2.9x1.7"(162x74.5x44mm)

Weight: 10.8oz (308g)


Display: Two red LED lamps

Test Leads: 17 alligator clips (16 red and 1 black (ground))

Cable resistance: 30kΩ max


Display: Two digit blue LED display

Test Leads: 2 alligator clips (1 red and 1 black)

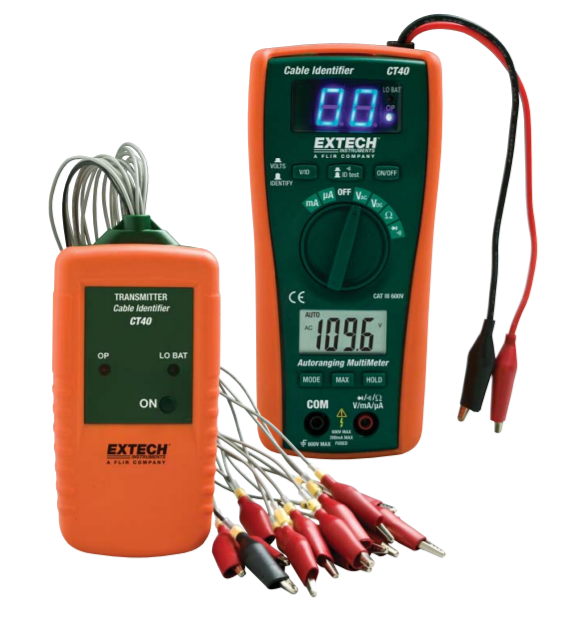

Complete with 16-line Transmitter, MultiMeter/ Receiver, two 9V batteries, pouch case, and 2 AAA batteries



  • Transmitter/Receiver enables one person to remotely identify up to 16 wires
  • Wire voltage check from 5 to 16VDC
  • MultiMeter functions include: AC/DC Voltage and Current, Resistance, Diode, and Continuity
  • Data Hold and Max Hold
  • Low battery indicator (transmitter and receiver)
  • Auto power off
  • CAT III-600V safety rating
  • Complete with 16-line Transmitter, MultiMeter/Receiver, two 9V batteries, pouch case, and 2 AAA batteries
