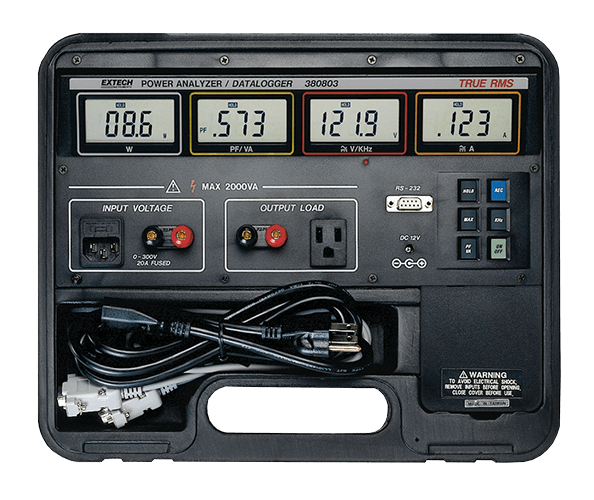

EXTECH 380803 True RMS功率分析仪

Watt:  200/2000W /0.1/1W/ ±0.9%

Power Factor: 0.5 to 1.0 /0.001 (Based on W, V, A)

Voltage: 200.0/750V /0.1/1V /±(0.5%)

Current:  2/20A via terminals /±(0.5%)

               2/15A via sockets

Frequency:  40Hz to 20kHz  /1Hz to 10Hz /±(0.5%)

Built-in Datalogger stores up to 1,012 readings (Single record storage or continuous datalogging)

Dimensions/Weight: 352 x 300 x 100mm / 3.6 lbs. (1.6 kg)

Complete with Windows compatible software, cable, 8 x AA batteries, power cord, 117 VAC adaptor and case



  • Four simultaneous displays of Watts, Power Factor or VA, Voltage or Hz, Amps
  • True RMS Voltage & Current measurements of sine, square, triangular and distorted wave forms with a crest factor < 5
  • Plug device to be tested directly into the Power Analyzer
  • Max, Data Hold and Overload Protection
  • Battery or AC adaptor provides line isolation
