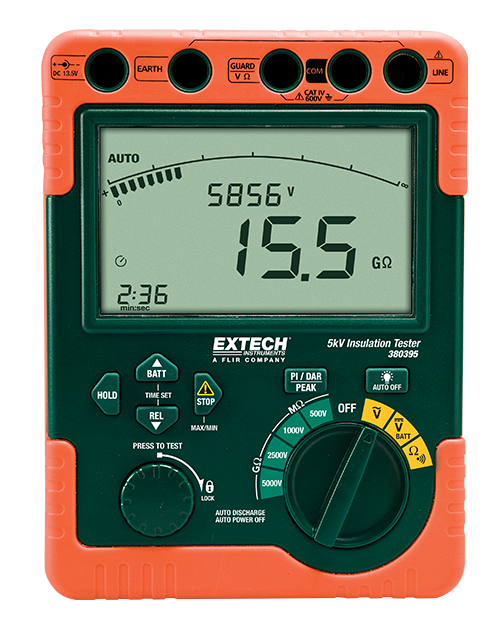

EXTECH 380396 高压数字绝缘测试仪

Test Voltage: 500V/1000V/2500V/5000V

Insulation Resistance: 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ

Accuracy: ±2.5% of reading

AC/DC Voltage: 0 to 600V

Accuracy: ±1% of reading

Resistance: 0 to 600Ω

Accuracy: ±1.5% of reading

Continuity: 50Ω

Power: Eight type C batteries

Dimensions:   7.8 x 5.8 x 3.4" (198 x 148 x 86mm)

Weight: 3.2lbs (1438g)

Complete with test leads, 8 x C batteries, AC adaptor, and heavy duty carrying case

Manufacture: Extech USA

Details

Features:

  • Test Voltages of 500V, 1000V, 2500V, and 5000V
  • Measure Insulation Resistance to 60GΩ
  • Large 6000 count display with bargraph and backlight
  • Polarization Index measurement (PI)
  • Dielectric Absorption Ratio measurement (DAR)
  • AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak and Relative functions
  • 1 to 15 minute timer function for IR measurements
  • Resistance measurement
  • Autoranging
  • Indication of output voltage and discharge voltage
  • Auto-discharge function and voltage output warning function
  • Auto Power off and battery check
  • Complete with test leads, 8 x C batteries, AC adaptor, and heavy duty carrying case
