Elcometer UG20DL 水下测厚仪（300米，数据记录，RS232，A扫描，Thrupaint）
制造商: ELCOMETER Model: UG20DL - 报价要求
- 报价要求
- 联系
Measurement Mode: PE, EE, PECT, EEV
Measurement Rate Manual: 4 readings per second
Measurement Range
+ PE: 0.63 - 500mm (0.025 - 19.999 inches)
+ EE: 2.54 - 102mm (0.100 - 4.000 inches)
+ PECT: 0.63 - 500mm (0.025 - 19.999 inches)
+ PECT: 10.0 - 254mm (0.001 - 0.100 inches)
+ EEV: 1.00 - 150mm (0.040 - 6.000 inches)
Measurement Accuracy: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.01mm (0.001 inch)
Velocity Calibration Range: 1250 - 13,995m/s
A-Scan: Stored in memory with each reading for review on PC
Waterproof - depth ratings: Maximum depth 300 metres (1,000 feet) - equivalent to IP68
Data logging: 5,000 with A-scan image & gauge settings in one batch
Calibration Options: Velocity & material type
Transducer Probe Type: Dual and single element
Transducer Frequency Range: 1 - 10MHz
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Operating Temperature: -30 to 60ºC (-20 to 140ºF)
Size (length x diameter): 229.0 x 60.33mm (9.0 x 2.4 inches)
Weight (including batteries): 680g (24.0oz)
RS232 Interface: Bi-directional
Packing List: Elcometer NDT UG20DL gauge, couplant, carry case, user manual, test certificate,3 x AA batteries, ElcoMaster® software, transfer cable, spare gaskets and lubrication set
Note: A transducer is not suppied with the Gauges, must be ordered separately

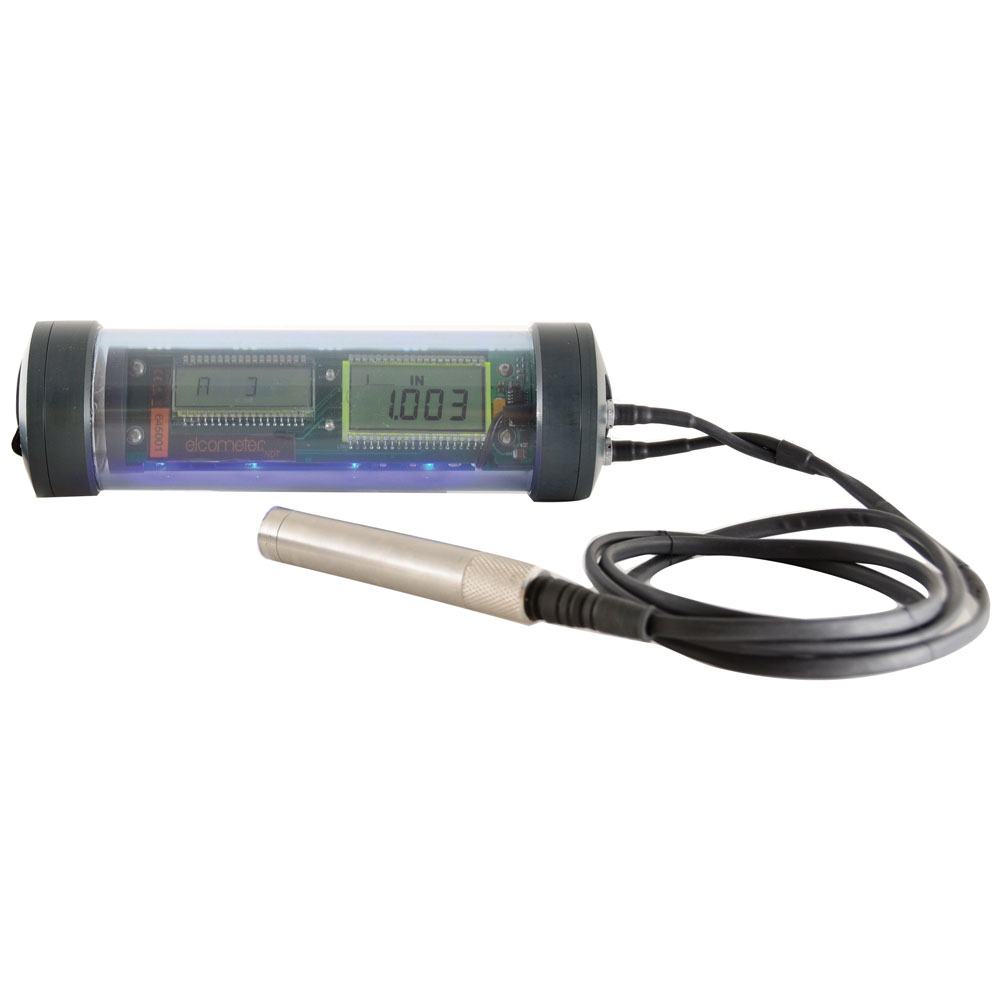

UG20DL Underwater Thickness Gauge
The UG20DL is an underwater material and coating thickness gauge ideal for offshore inspections.
Waterproof to a depth of 300 metres (1,000 feet) the UG20DL offers many features and benefits of the CG100 series in an easy to use brightly lit gauge.
Offering both dual & single element transducers the UG20DLs memory allows users to store up to 5,000 individual readings, together with the A-Scan waveform which can be downloaded to the data management software for further analysis on dry land.
 |
Features:
|
UG20DL Underwater Thickness Gauge
Technical Specification
|
Model & Part Number |
UG20DL |
|
Material thickness digits display |
■ |
|
Measurement Mode |
Dual Element: PE, EE (ThruPaint™), PECT Single Element: EEV (ThruPaint™) |
|
Measurement Rate Manual: |
4 readings per second |
|
Measurement Range |
PE: 0.63 - 500mm (0.025 - 19.999 inches) |
|
Measurement Accuracy |
± 1% or ±0.1mm whichever is the greater |
|
Measurement Resolution |
0.01mm (0.001 inch) |
|
Velocity Calibration Range |
1250 - 13,995m/s (0.0492 - 0.5510in/ms) |
|
A-Scan |
Stored in memory with each reading for review on PC |
|
Calibration setups |
1 user programmable & 8 pre-calibrated velocities for: |
|
Waterproof - depth ratings |
Maximum depth 300 metres (1,000 feet) - equivalent to IP68 |
|
Pulser type |
Dual square wave pulsers |
|
Gain |
Automatic gain control (AGC) with 100dB range, |
|
Timing |
Precision 25MHz TCXO with single shot |
|
Data logging |
|
|
Calibration Options |
Velocity & material type |
|
Transducer Probe Type |
Dual and single element |
|
Transducer Frequency Range |
1 - 10MHz |
|
Transducer recognition |
Custom automatic (dual transducers) & manual - selectable from a list |
|
V-path / dual path error correction |
Automatic |
|
Probe Zero |
Automatic (dual transducers) & manual (via integrated probe disk) |
|
Display |
12.7mm (1/2") 4.5 digit LCD |
|
Display Refresh Rate |
25Hz |
|
Units (selectable) |
mm or inches |
|
Backlight |
on / off / auto |
|
Repeatability / Stability Indicator |
■ |
|
Battery Type |
3 x AA alkaline |
|
Battery Life (approximate) |
50 hours (15 hours with backlight on) |
|
Low Battery Indicator |
■ |
|
Battery Save Mode |
Auto |
|
Operating Temperature |
-30 to 60ºC (-20 to 140ºF) |
|
Size (length x diameter) |
229.0 x 60.33mm (9.0 x 2.4 inches) |
|
Weight (including batteries) |
680g (24.0oz) |
|
Case design |
High strength transparent plastic housing with |
|
Transducer connctor type |
LEMO underwater connectors |
|
RS232 Interface |
Bi-directional |
|
Packing List |
Elcometer NDT UG20DL gauge, couplant, carry case, user manual, test certificate, |
