Elcometer PTG8BDL-TXC精密测厚仪(0.15mm~25.40mm,IP54,数据记录,蓝牙,B扫描)
制造商: ELCOMETER Model: PTG8BDL-TXC - 联系
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Echo-Echo (E-E), Interface Echo (I-E), Plastic Mode (PLAS)
Measurement Rate: 4, 8, 16Hz
Thickness Range: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Accuracy: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Units: mm or inches
Selectable Reading Resolution
+ Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
+ Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Calibration Options: 1 - point, 2 - point, Material selection; 39 preset materials, Factory; resets to the factory calibration, Velocity (speed of sound)
Datalogging: 10000 reading, 1000 batches
Data Output: USB; Bluetooth, ElcoMaster® software
Battery Type: 2 x AA
Battery Life: Alkaline: 15 hours
Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210g
Packing List: Elcometer PTG8BDL, 15MHz 1/4 Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, USB cable, ElcoMaster® Software, two year warranty extension card, operating instructions
Note: A transducer is not suppied with the Gauges, must be ordered separately

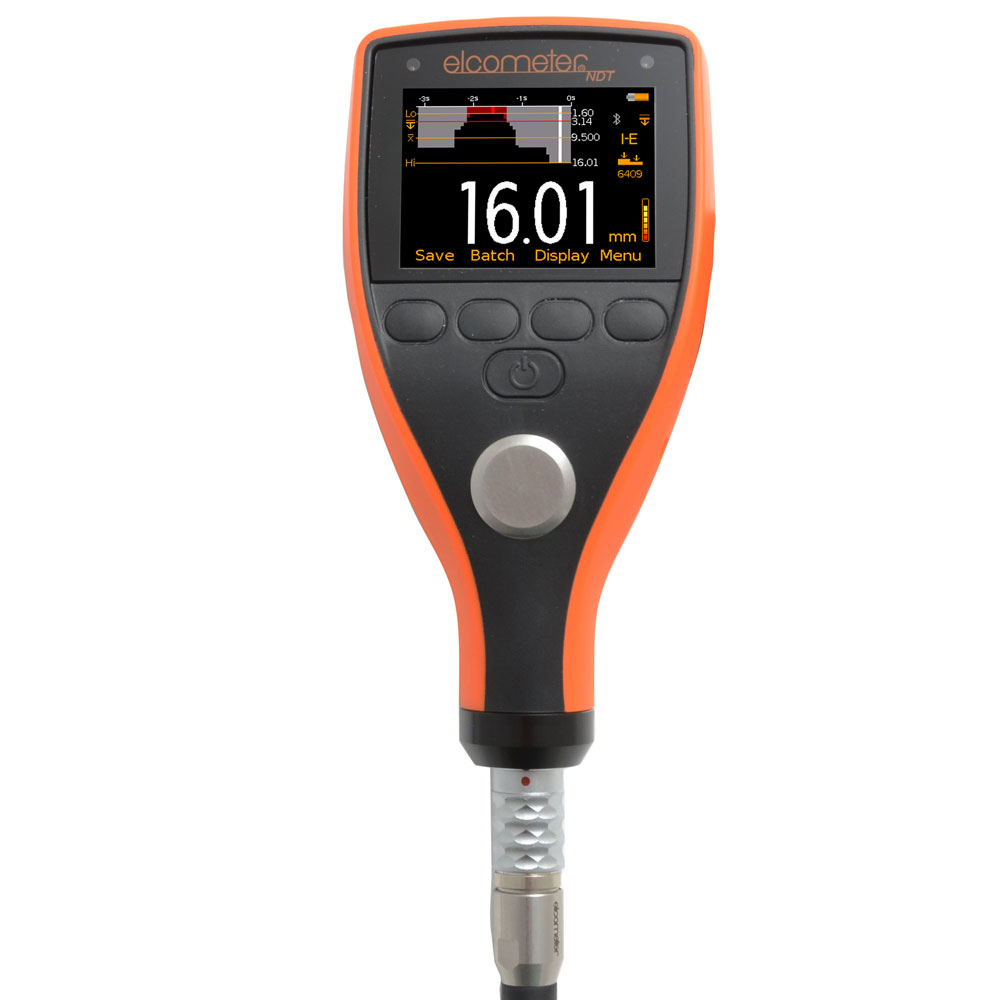

PTG8 Precision Thickness Gauge
The PTG8 is the top of the range gauge with all the features and functionality necessary for measuring, with precision, material thickness on virtually any material.
With a user definable display, users can choose to view readings, statistical information, bar graph together with the highest (Hi); lowest (Lo); and average (x); reading or a run chart; a trend graph of the last 20 readings.
Measurement Mode
In Scan Mode, readings can be taken at a rate of 16Hz (16 readings per second) over a large surface area. When the transducer is lifted off the surface, the average, lowest and highest thickness values are displayed.
Calibration Options
The PTG8 allows users to store into memory up to three calibrations. Once saved the user can select a calibration without the need to re-calibrate the gauge, ideal for users who are measuring a variety of materials or thicknesses.
Using the gauge alpha-numeric function, calibration memories can be re-named to suit the calibration setting.
Display Modes
The PTG8 has user definable upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch. If a measurement is taken which falls outside set limits, the reading value and the limit icon turns red, the red LED flashes and the alarm beeps.
The PTG8 has Differential Mode; once a user defined nominal thickness value is set, the gauge displays the measured thickness together with the variation from the set nominal value thus indicating areas of the material which are thinner or thicker than expected.
The PTG8 offers B-Scan, a time based, cross sectional 2 dimentional graphical view of the material under test, ideal for relative depth analysis. The zoom of the B-Scan reading can either be set to automatic or can be defined by the user to focus on areas of interest.
Data Logging
The PTG8 can store 100,000 readings in up to 1,000 sequential or grid type batches. Using grid batching, readings are stored in a spreadsheet type format. The Obst feature, allows the user to record an obstruction within the grid.
Data Output
Compatible with ElcoMaster®, PC & Mobile Apps, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.
|
Features:
|
<td style="border:solid windowtext 1.0pt;m
Part Number (with Transducer)1 |
PTG8BDL-TXC |
Part Number (gauge only) |
PTG8BDL |
Easy to use menu structure in multiple languages |
■ |
Tough, impact, waterproof and dust resistant equivalent to IP54 |
■ |
Bright colour screen with permanent backlight |
■ |
Ambient light sensor, with adjustable brightness |
■ |
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
Large positive feedback buttons |
■ |
USB power supply via PC |
■ |
Gauge software updates2 via ElcoMaster® Software |
■ |
2 year gauge warranty3 |
■ |
Limits: 40 definable audible & visual pass/fail warnings |
■ |
Measurement Mode |
|
Echo-Echo (E-E) |
■ |
Interface Echo (I-E) |
■ |
Plastic Mode (PLAS) |
■ |
Measurement Rate |
4, 8, 16Hz4 |
Thickness Range5 |
|
E-E 0.15 - 10.15mm (0.006-0.400") |
■ |
I-E 1.65 - 25.40mm (0.065-1.000") |
■ |
PLAS 0.15 - 5.00mm (0.006-0.197") |
■ |
Measurement Accuracy6 |
±1% or ±0.015mm (0.0006") |
Measurement Units |
mm or inches |
Repeatability / Stability Indicator |
■ |
Display Mode: |
|
Reading |
■ |
Selected statistics |
■ |
Scan thickness bar graph |
■ |
Run Chart |
■ |
Readings and Differential |
■ |
B-Scan cross sectional display |
■ |
Selectable Reading Resolution |
|
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs |
■ |
Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs |
■ |
Statistics |
|
Number of readings,n; Mean average, x; Standard deviation, σ. |
■ |
Lowest reading, Lo; Highest reading, Hi |
■ |
Low high limit value |
■ |
Reading Range Value |
■ |
Nominal Value |
■ |
Number of readings below low limit |
■ |
Number of readings above high limit |
■ |
Calibration Options |
|
1 - point |
■ |
2 - point |
■ |
Material selection; 39 preset materials |
■ |
Factory; resets to the factory calibration |
■ |
Velocity (speed of sound) |
■ |
Calibration Features |
|
Calibration lock: with optional PIN Lock |
■ |
Test calibration feature |
■ |
Calibration memories: 3 programmable memories |
■ |
Measurement outside calibration warning |
■ |
Data Logging |
|
Number of readings |
100,000 |
Number of batches |
1,000 |
Sequential batching |
■ |
Grid batching |
■ |
Fixed batch size mode; with batch linking |
■ |
Obstruct entry; add obst into grid location |
■ |
Delete last reading |
