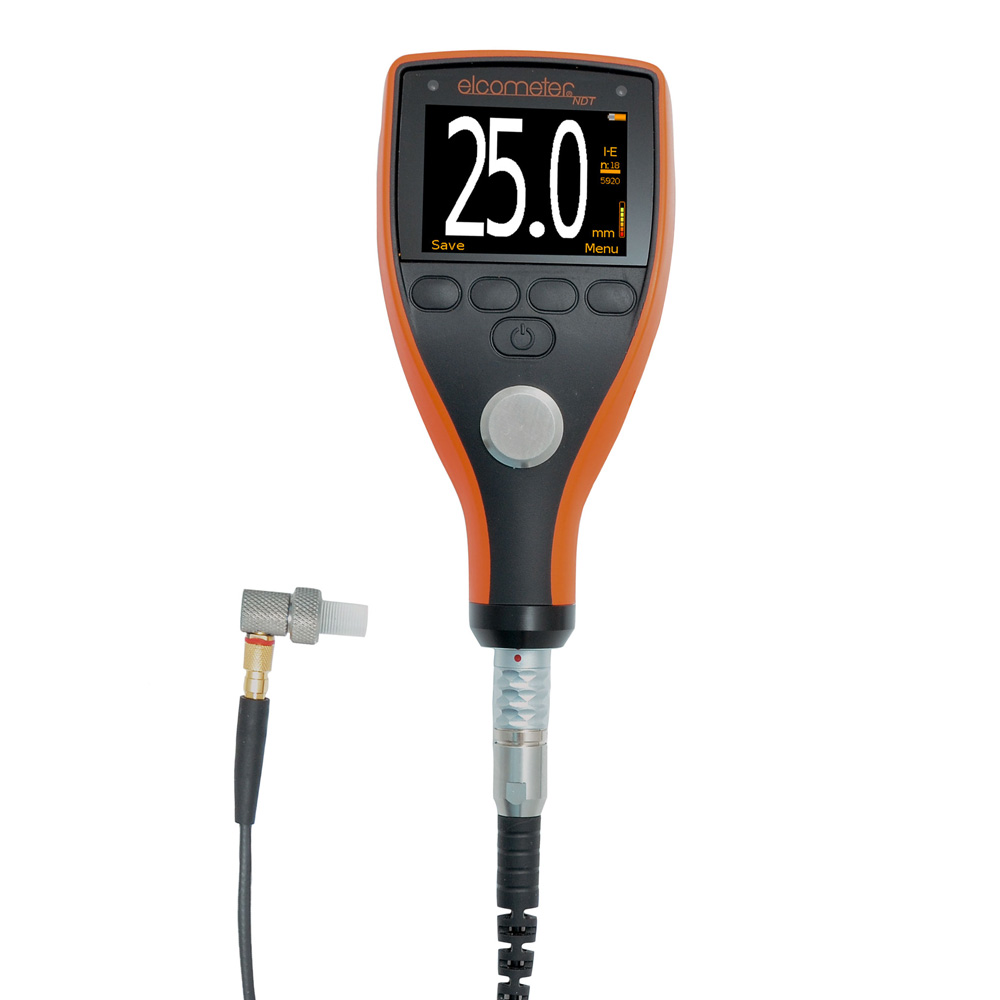

Elcometer PTG6-TXC 精密测厚仪（0.15mm~25.40mm，IP54，Plas）
制造商: ELCOMETER Model: PTG6-TXC - 联系
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Echo-Echo (E-E), Interface Echo (I-E), Plastic Mode (PLAS)
Measurement Rate: 4, 8, 16Hz
Thickness Range: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Accuracy: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Units: mm or inches
Selectable Reading Resolution
+ Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
+ Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Calibration Options: 1 - point, 2 - point, Material selection; 39 preset materials, Factory; resets to the factory calibration, Velocity (speed of sound)
Data Output: USB; to PC, ElcoMaster® software
Battery Type: 2 x AA
Battery Life: Alkaline: 15 hours
Lithium: 28 hours
Operating Temperature: -10 to 50°C (14 to 122°F)
Size (w x h x d): 145x73x37mm (5.7x2.84x1.46")
Weight (including batteries): 210g (7.4oz)
Packing List: Elcometer PTG6, 15MHz 1/4 inch Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions
Note: A transducer is not suppied with the Gauges, must be ordered separately
Datasheet Transducer
PTG6 Precision Thickness Gauge
When precision is key, the PTG6 has a measurement range of 0.15mm to 25.40mm with ±1% accuracy, across three measurement modes, Interface Echo (I-E), Echo-Echo (E-E), and Plastic Mode (PLAS). This gauge allows users to take measurements with pinpoint accuracy.
Calibration Options
The PTG6 has a number of calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.
The PTG6 also offers the additional calibration options of 2-Point & Velocity.
Data Output
Compatible with ElcoMaster® software, individual readings can be downloaded via USB to PC or similar device for further analysis.
 |
Features:
|
Technical Specification
|
Part Number (with Transducer)1 |
PTG6-TXC |
|
Part Number (gauge only) |
PTG6 |
|
Easy to use menu structure in multiple languages |
■ |
|
Tough, impact, waterproof and dust resistant equivalent to IP54 |
■ |
|
Bright colour screen with permanent backlight |
■ |
|
Ambient light sensor, with adjustable brightness |
■ |
|
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
|
Large positive feedback buttons |
■ |
|
USB power supply via PC |
■ |
|
Gauge software updates2 via ElcoMaster® Software |
■ |
|
2 year gauge warranty3 |
■ |
|
Measurement Mode |
|
|
Echo-Echo (E-E) |
■ |
|
Interface Echo (I-E) |
■ |
|
Plastic Mode (PLAS) |
■ |
|
Measurement Rate |
4, 8, 16Hz4 |
|
Thickness Range5 |
|
|
E-E 0.15 - 10.15mm (0.006-0.400") |
■ |
|
I-E 1.65 - 25.40mm (0.065-1.000") |
■ |
|
PLAS 0.15 - 5.00mm (0.006-0.197") |
■ |
|
Measurement Accuracy6 |
±1% or ±0.015mm (0.0006") |
|
Measurement Units |
mm or inches |
|
Repeatability / Stability Indicator |
■ |
|
Display Mode: Reading |
■ |
|
Selectable Reading Resolution |
|
|
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs |
■ |
|
Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs |
■ |
|
Calibration Options |
|
|
1 - point |
■ |
|
2 - point |
■ |
|
Material selection; 39 preset materials |
■ |
|
Factory; resets to the factory calibration |
■ |
|
Velocity (speed of sound) |
■ |
|
Calibration Features |
|
|
Calibration lock: with optional PIN Lock |
■ |
|
Test calibration feature |
■ |
|
Data Output |
|
|
USB; to PC |
■ |
|
ElcoMaster® software |
■ |
|
Transducer Probe Type |
Single element |
|
Auto transducer recognition |
■ |
|
Battery Type7 |
2 x AA |
|
Battery Life7 |
Alkaline: 15 hours |
|
Operating Temperature |
-10 to 50°C (14 to 122°F) |
|
Size (w x h x d) |
145x73x37mm (5.7x2.84x1.46") |
|
Weight (including batteries) |
210g (7.4oz) |
|
Packing List |
Elcometer PTG6, 15MHz 1/4" Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions
|
STANDARDS:
EN14127, EN15317
1 Supplied with 15MHz 1/4"Microdot right angle single element transducer
2 Internet connection required
3 The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years
4 User selectable default setting in scan mode is 16 Hz
5 Dependent on the material being measured and the transducer being used
6 Whichever is the greater
7 Supplied with Alkaline, Lithium and rechargable can be used with the gauges, continuous use at 1 reading per second
