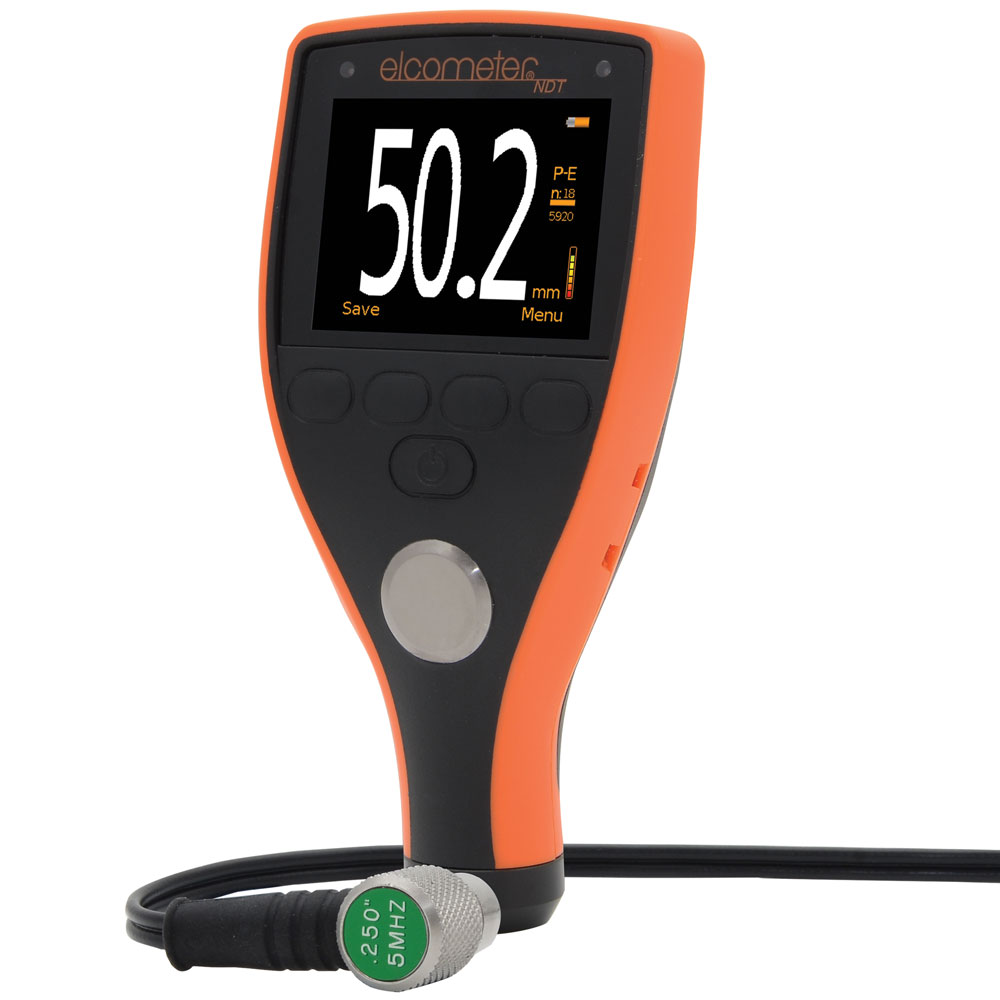

MTG4 Material Thickness Gauge

With a choice of calibration options and measurement modes, the MTG4 is ideal for taking readings on a wide range of coated and uncoated materials.

As well as all the features of the MTG2, the MTG4 has two calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.

Measurement Mode

Echo-Echo ThruPaint™ (E-E) measurement mode enables readings to be taken on coated materials with a thickness range up to 25.4mm (1”).  In Echo-Echo ThruPaint™ mode, the coating thickness is ignored and the material thickness from the top surface of the material to the material density boundary is displayed.

Data Output

Compatible with ElcoMaster^® software, individual readings can be downloaded via USB to PC or similar device for further analysis.



Features: Pulsed-Echo (P-E) and Echo-Echo ThruPaint™ (E-E) measurement modes 1-Point, Material and Factory calibration options Pre-set measurement rate of 4 readings per second USB data output to PC or similar device





MTG4 Material Thickness Gauge

Technical Specification

Part Number (with Transducer)1	MTG4-TXC
Part Number (gauge only)	MTG4
Easy to use menu structure in multiple languages	■
Tough, impact, waterproof and dust resistant equivalent to IP54	■
Bright colour screen with permanent backlight	■
Ambient light sensor, with adjustable brightness	■
Scratch and solvent resistant display; 2.4" (6cm) TFT	■
Large positive feedback buttons	■
USB power supply via PC	■
Gauge software updates2 via ElcoMaster® Software	■
2 year gauge warranty3	■
Measurement Mode
Pulsed Echo (P-E)	■
Echo-Echo ThruPaint™ (E-E)	■
Measurement Rate	4Hz
Thickness Range4
P-E: 0.63-500mm (0.025-20")	■
E-E: 2.54 - 25.40mm (0.100-1.00")	■
Measurement Accuracy5	±1% or ±0.1mm (0.004")
Measurement Units	mm or inches
Repeatability / Stability Indicator	■
Display Mode: Reading	■
Selectable Reading Resolution
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs	■
Calibration Options
Zero (using the integral zero disc)	■
1 - point	■
Material selection; 39 preset materials	■
Factory; resets to the factory calibration	■
Data Output
USB; to PC	■
Transducer Probe Type	Dual element
Auto transducer recognition	■
Auto V-path correction	■
Battery Type6	2 x AA
Battery Life6	Alkaline: 15 hours Lithium: 28 hours
Operating Temperature	-10 to 50°C (14 to 122°F)
Size (w x h x d)	145x73x37mm (5.7x2.84x1.46")
Weight (including batteries)	210g (7.4oz)
Packing List	Elcometer MTG4, 5MHz 1/4" right angle transducer, couplant, wrist harness, screen protector, protective case, 2 x AA batteries, calibration certificate, operating instructions



STANDARDS:

ASTM E797, EN 14127, EN15317



¹ 5MHz 1/4" right angle transducer supplied

² Internet connection required

³ The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years

⁴ Dependent on the material being measured and the transducer being used

⁵ Whichever is the greater

⁶ Supplied with Alkaline, Lithium and rechargable can be used with the gauges, continuous use at 1 reading per second
