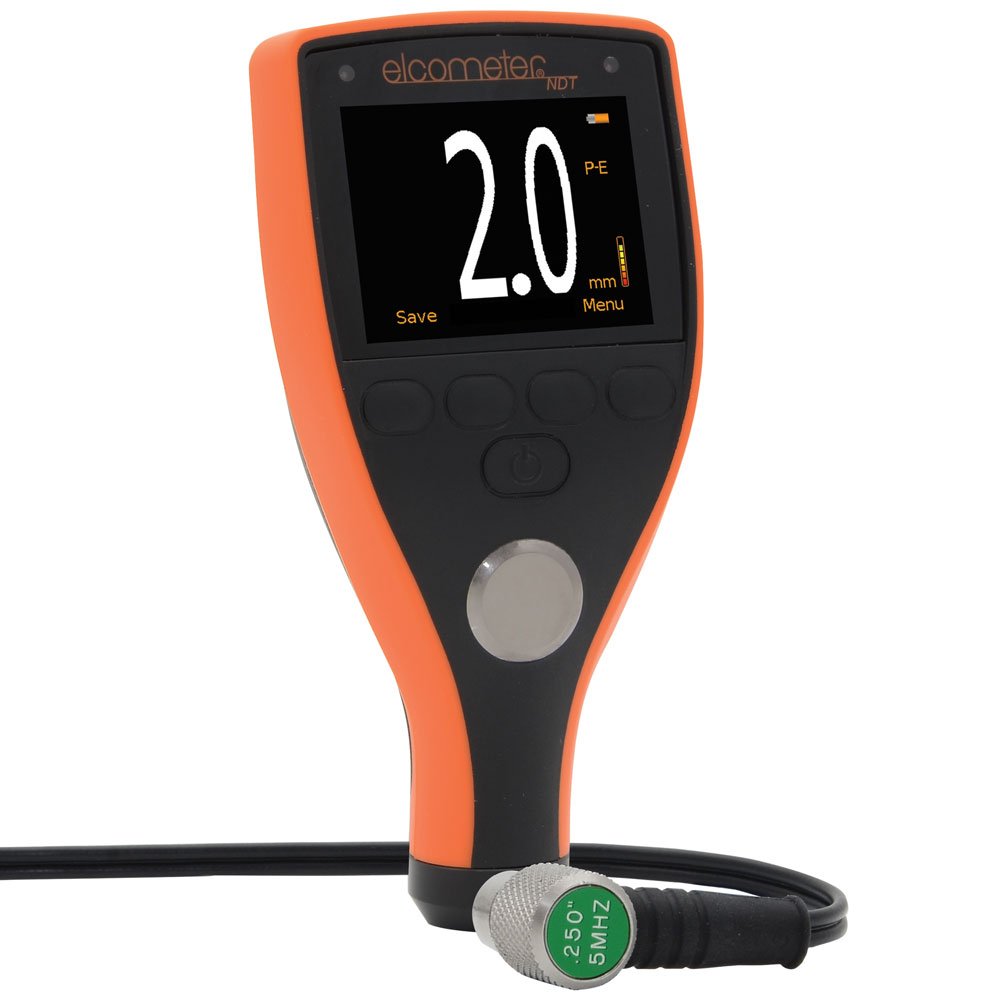

Elcometer MTG2-TXC 超声波材料厚度计(0.63-500mm,IP54)

Pulsed-Echo (P-E) measurement Mode
Pre-calibrated for measuring on steel only
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Pulsed Echo (P-E)
Measurement Rate: 4 Hz
Thickness Range: P-E: 0.63-500mm
Measurement Accuracy: ±1% or ±0.1mm
Measurement Units: mm or inches
Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
Data Output: USB; to PC
Transducer Probe Type: Dual element
Battery Type: 2xAA
Battery Life:  Alkaline: 15 hours; Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210 g
Packing List: Elcometer MTG2 gauge, 5MHz 1/4  right angle transducer, couplant,  wrist harness, screen protector, protective case, 2 x AA batteries, calibration certificate, operating instructions


Details

Manual

Datasheet



Part Number (with Transducer)1

MTG2-TXC

Easy to use menu structure in multiple languages

Tough, impact, waterproof and dust resistant equivalent to IP54

Bright colour screen with permanent backlight

Ambient light sensor, with adjustable brightness

Scratch and solvent resistant display; 2.4" (6cm) TFT

Large positive feedback buttons

USB power supply via PC

Gauge software updates2 via ElcoMaster® Software

2 year gauge warranty3

Measurement Mode



Pulsed Echo (P-E)

Measurement Rate

4Hz

Thickness Range4



P-E: 0.63-500mm (0.025-20")

Measurement Accuracy5

±1% or ±0.1mm (0.004")

Measurement Units

mm or inches

Repeatability / Stability Indicator

Display Mode: Reading

Selectable Reading Resolution



Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

Calibration Options



Zero (using the integral zero disc)

Data Output



USB; to PC

Transducer Probe Type

Dual element

Auto transducer recognition

Auto V-path correction

Battery Type6

2 x AA

Battery Life6

Alkaline: 15 hours

Lithium: 28 hours

Operating Temperature

-10 to 50°C (14 to 122°F)

Size (w x h x d)

145x73x37mm (5.7x2.84x1.46")

Weight (including batteries)

210g (7.4oz)

Packing List

Elcometer MTG2 gauge, 5MHz 1/4"  right angle transducer, couplant,  wrist harness,

screen protector, protective case, 2 x AA batteries, calibration certificate, operating instructions



STANDARDS:

ASTM E797, EN 14127, EN15317



1 5MHz 1/4" right angle transducer supplied

2 Internet connection required

3 The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years

4 Dependent on the material being measured and the transducer being used

5 Whichever is the greater

6 Supplied with Alkaline, Lithium and rechargeable can be used with the gauges, continuous use at 1 reading per second
