Elcometer K6085M001 便携式分光光度仪
制造商: ELCOMETER Model: K6085M001 - 联系
Manufacture: Elcometer
Model: K6085M001
Origin: England
Warranty: 12 month
Measuring Geometrics: d/8°, DRS spectral engine, fixed 8mm aperture Simultaneous SPIN / SPEX
Light Source: Gas filled tungsten lamp
Illuminant Types: A, C, D50, D55, D65, F2, F7, F11 & F12
Standard Observers: 2° and 10°
Spectral Range: 400-700nm
Memory: 1,000 standards with tolerances, 4,000 samples
Measurement Range: 0 to 200% reflectance
Measuring Time: Approximately 2 seconds
Repeatability: Ci60 - 0.10 ∆E*ab on white ceramic (standard deviation)
Lamp Life: Approximately 500,000 measurements
Power Supply: Removable battery pack; 7.4 VDC, 2400 mAh
Measurements per Charge: 1000 measurements within 8 hour period
Weight: 1.05kg (2.32lbs.)
Screen Display: 3.2 inch backlit Colour Graphic LCD
Dimensions: 109 x 91 x 213mm (4.3 x 3.6 x 8.4”)
Packing List: Elcometer 6085 Ci60, calibration standards, calibration certificate for standards, AC adaptor, mains leads (UK & EUR), carry case & operating instructions

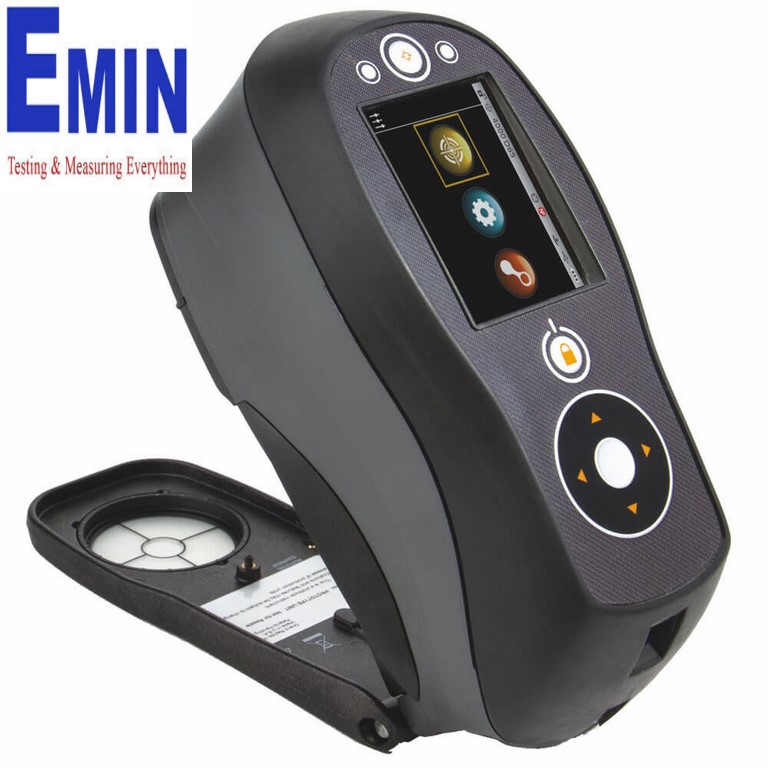

Elcometer 6085 Portable Sphere Spectrophotometer
The Elcometer 6085 is an affordable sphere spectrophotometer, designed to give fast, precise and accurate colour measurement information on materials ranging from paper and paint to plastics and textiles.
- Lightweight, compact, portable instrument
- Diffuse/8° sphere optical geometry
- Fixed 8mm aperture
- Large, easy-to-read high res graphical colour LCD display
- Opacity and colour strength measurement
- Simultaneous measurement of both specular component included and specular component excluded
- Rugged construction
- Reliable detent lock
- Rechargeable battery for remote use
Elcometer 6085 Portable Sphere Spectrophotometer
Technical Specification
|
Part Number |
Description |
Certificate |
|
K6085M001 |
Elcometer 6085 Ci60 Portable Sphere Spectrophotometer |
• |
|
K6085M002 |
Elcometer 6085 Ci62 Portable Sphere Spectrophotometer |
• |
|
Measuring Geometrics |
d/8°, DRS spectral engine, fixed 8mm aperture Simultaneous SPIN / SPEX |
|
|
Light Source |
Gas filled tungsten lamp |
|
|
Illuminant Types |
A, C, D50, D55, D65, F2, F7, F11 & F12 |
|
|
Standard Observers |
2° and 10° |
|
|
Spectral Range |
400-700nm |
|
|
Memory |
1,000 standards with tolerances, 4,000 samples |
|
|
Measurement Range |
0 to 200% reflectance |
|
|
Measuring Time |
Approximately 2 seconds |
|
|
Inter-Instrument Agreement (Ci60) |
CIE L*a*b*: |
|
|
Inter-Instrument Agreement (Ci62) |
CIE L*a*b*: |
|
|
Short-term Repeatability* |
Ci60 - 0.10 ∆E*ab on white ceramic (standard deviation) |
|
|
Lamp Life |
Approximately 500,000 measurements |
|
|
Power Supply |
Removable battery pack; 7.4 VDC, 2400 mAh |
|
|
Measurements per Charge |
1000 measurements within 8 hour period |
|
|
Weight |
1.05kg (2.32lbs.) |
|
|
Screen Display |
3.2 inch backlit Colour Graphic LCD |
|
|
Dimensions |
109 x 91 x 213mm (4.3 x 3.6 x 8.4”) |
|
|
Packing List |
Elcometer 6085 Ci60, calibration standards, calibration certificate for standards, AC adaptor, mains leads (UK & EUR), carry case & operating instructions |
|
|
Packing List |
Elcometer 6085 Ci62, calibration standards, calibration certificate for standards, AC adaptor, mains leads (UK & EUR), carry case & USB cable, operating instructions |
|
