Elcometer G214L ---- 3非接触式温度计(-35°C至365°C)


Measuring Range: -35°C to 365°C (-31 to 689°F)
Ambient Temperature: 0 to 50°C (32 to 122°F)
Resolution: 0.2°C (0.5°F)
Accuracy: ±1.5°C (2.7°F)
Distance-To-Target: 8:1, 25mm spot size
Emissivity: Fixed at 0.95
Response Time: 1 second
Battery Type: 2 x LR03 (AAA)
Battery Life: 14+ hours continuous use
Dimensions: 166 x 34 x 64
Weight: 113g
Packing List: Elcometer 214 Infrared Digital Laser Thermometer, 2 x AAA batteries (fitted), wrist strap and operating instructions

Details

Manual

Datasheet

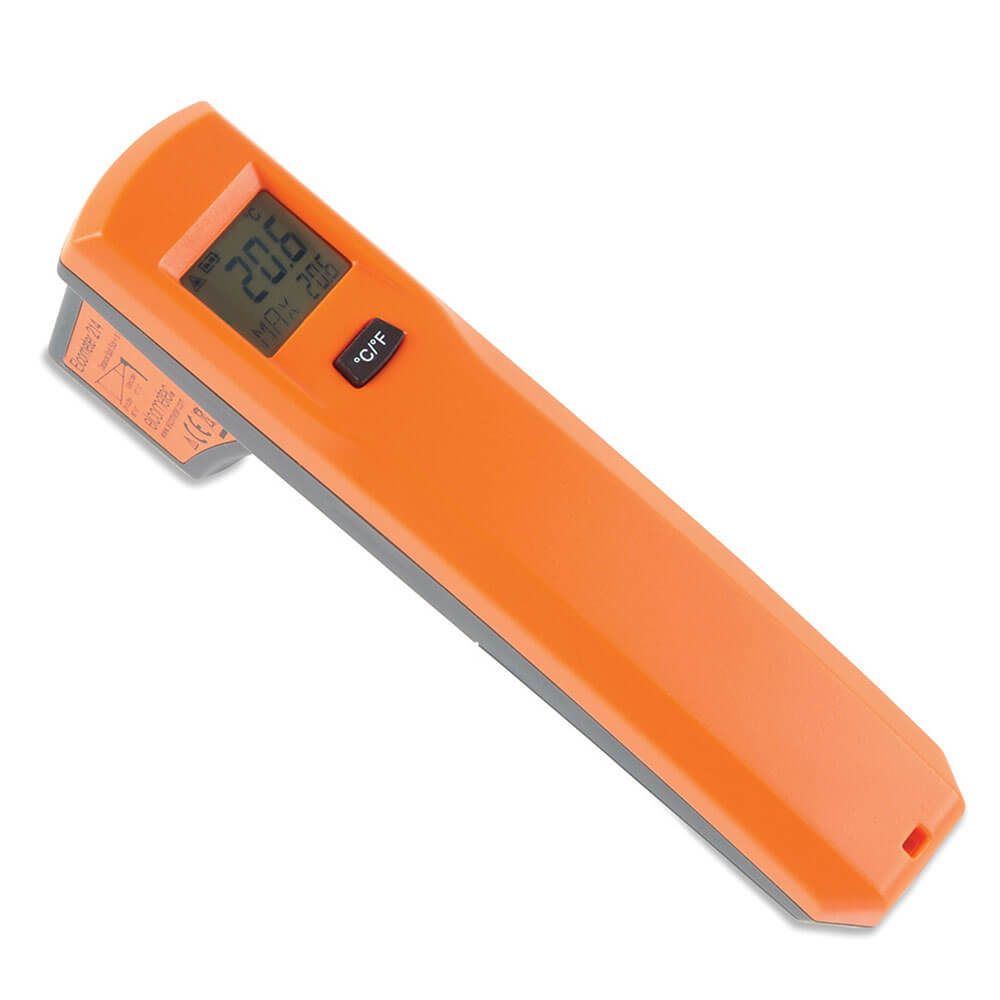

Elcometer 214L IR Digital Laser Thermometer

The Elcometer 214 is a simple, easy-to-use, non-contact thermometer which safely and accurately measures surface temperature of non-reflective materials using infrared technology.

With a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second.

  • Non-contact technology with laser spot indicator
  • ºC / ºF user switchable
  • Fast, 1 second scanning of any surface
  • Measure objects as small as 25mm
  • Distance-to-Target Ratio of 8:1
  • Easy to read LCD display

The Elcometer 214 IR Digital Laser Thermometer has a D/T ratio (Distance-to-Target) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.

As can be seen in the diagram, if the distance from the sensor optics to the target is 200mm  for example, the diameter of the measured area is 25mm
