Elcometer BG80TDL 螺栓张力检测仪(LEMO,数据记录,RS232,温度补偿)

Measurement Mode: PE & PE with Gate
Measurement Rate: Manual: 4 readings per second
Measuring Range: 25.4 – 2440mm (1 – 96 inches)
Measurement Accuracy2: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.0001mm (0.00001 inch)
Velocity Calibration Range: 250 - 10,000m/s; 0.0492 - 0.3937in/μs
Data logging: 8,000 readings
Calibration Options: fixed, single & 2 point
Transducer Probe Type: single element
Transducer Frequency Range: 1 - 10MHz
Display: 1/8 VGA
Units (selectable): mm or inches
Battery Type: 3 x AA alkaline
Battery Life (approximate): 150 hours
perating Temperature : -10 to 60ºC (14 to 140ºF)
Size (w x h x d): 63.5 x 165 x 31.5mm
Weight (including batteries): 383g
Transducer Connector Type: LEMO
Packing List: Elcometer NDT BG80DL or BG80TDL gauge, couplant, carry case,
user manual, test certificate, 3 x AA batteries, DakView software, RS232/DB9 & USB/DB9 transfer cable

Note: A transducer is not suppied with the Gauges, must be ordered separately


Details

Manual

Datasheet

Datasheet Transducer

BG80 Bolt Tension Monitors

When nuts and bolts are fastened together under load the action of tightening the nut increases the force applied to the bolt causing elongation.

The BG80 range of bolt tension monitors accurately measures this elongation allowing the gauges to accurately measure time (nanoseconds), elongation, load, stress, and %strain of the bolt.

The Elcometer BG80 bolt tension monitor is available in two models: BG80DL and BG80TDL.

By using ultrasonics, bolt tension monitors are not affected by temperature, friction or resistance factors affecting the accuracy of standard torque measurement techniques - giving the BG80 range accuracy within 0.0001mm (0.00001 inch).

Using the gauge RS232 interface together with the optional shut off accessory the gauge can be programmed to automatically stop the tightening process when the appropriate load has been applied.

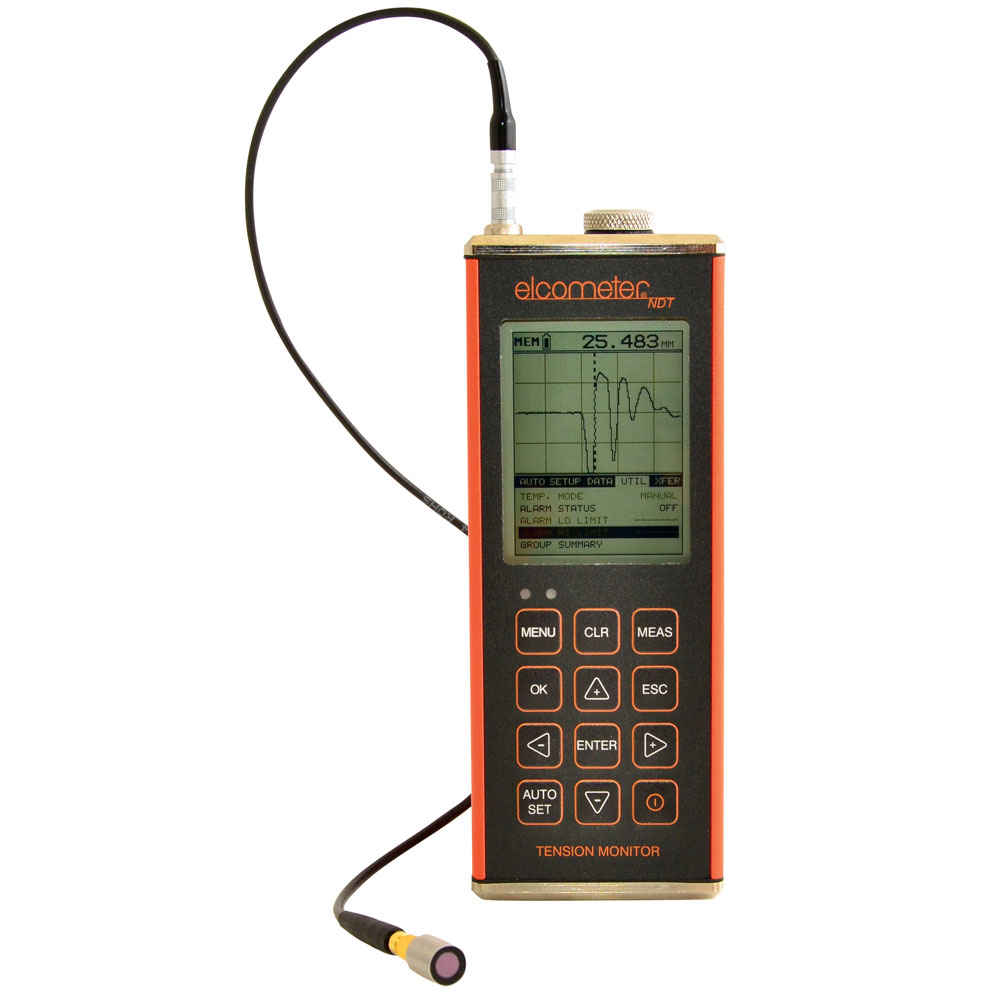

BG80 Bolt Tension Monitor

Features:

  • Range of display & measurement options including: Elongation, Load, Stress, and %Strain, RF, Rectified, Large Digits with Limits Bar
  • BG80TDL features temperature compensation to counteract measurement irregularity caused by temperature change
  • Data storage capability: 8,000 readings and waveforms
  • Auto Set feature automatically optimizes detection and adjusts display
  • Hi/Lo Alarm tolerance limits work in conjunction with the data port










bolt tension

How does it work?

As a fastener is tightened it stretches (elongates) in length.

Manual torque wrenches measure the force applied when tightening a fastener, the accuracy can be affected by temperature, friction and resistance.

As BG80 & BG80TDL ultrasonically measures the change in length accurately determining the applied load of a fastener as it is tightened, they are not affected by these factors.







BG80 Bolt Tension Monitors

Technical Specification

Model & Part Number

BG80DL & BG80TDL

Material thickness digits display

Measurement Mode1

PE & PE with Gate

Measurement Rate:
Manual:


4 readings per second

Measuring Range2

25.4 – 2440mm (1 – 96 inches)

Measurement Accuracy2

± 1% or ±0.1mm whichever is the greater

Measurement Resolution

0.0001mm (0.00001 inch)

Velocity Calibration Range

1250 - 10,000m/s
0.0492 - 0.3937in/μs

Additional Features:



Limit alarm mode

Data logging

8,000 readings

Calibration Options

fixed, single & 2 point

Transducer Probe Type

single element

Transducer Frequency Range

1 - 10MHz

Display

1/8 VGA

Units (selectable)

mm or inches

LED Backlight

on / off / auto

Repeatability / Stability Indicator

Battery Type

3 x AA alkaline

Battery Life (approximate)

150 hours

Low Battery Indicator

Battery Save Mode

auto

Operating Temperature

-10 to 60ºC (14 to 140ºF)

Size (w x h x d)

63.5 x 165 x 31.5mm
2.5 x 6.5 x 1.24 inches

Weight (including batteries)

383g (13.5oz)

Aluminium case design with gasket sealed end
caps, waterproof membrane keypad

Transducer Connector Type

LEMO

RS232 Interface

Packing List

Elcometer NDT BG80DL or BG80TDL gauge, couplant, carry case,

user manual, test certificate, 3 x AA batteries, DakView software,

RS232/DB9 & USB/DB9 transfer cable



¹ PE: Pulse-Echo Mode

² Measuring range & accuracy depends on material, surface conditions and the transducer selected
