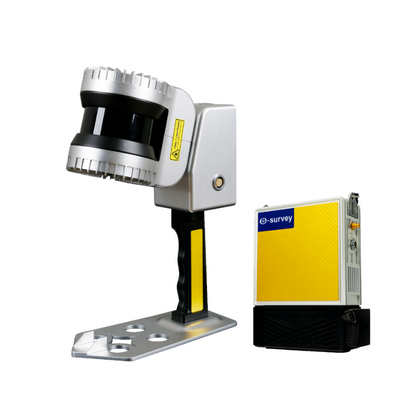

E-survey eHLS1 手持式激光雷达扫描仪

Range: 120 m

Lidar channels: 32 channels

Points per second: 655,000

Laser product classification: Level 1

Laser wavelength: 865 nm

FOV: 360° x 270°

Scanning accuracy: 3 - 5 cm

Data format: DAT, PCD

Power supply 12 - 24 V dc/25 W

Working time 3 hours (one battery)

Storage 1T (expandable)

Working environment Indoor and outdoor

Working temperature -20℃ - 60℃

Dimension

Handheld: 295 mm x 197 mm x 99.7 mm (with handle)

Host: 128 mm x 185 mm x 52 mm

Weight

Handheld: 1.6 kg (with handle)

Host: 1.0 kg (without battery)

Details

Datasheet
