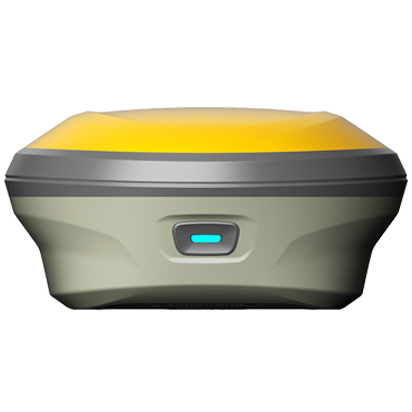

E-survey E500-U Tilt-featured RTK Receiver

Satellites tracking

GPS: L1CA, L2P(Y), L2C, L5

BDS: B1I, B2I, B3I, B1C, B2a, B2b

GLONASS: L1, L2

GALILEO: E1, E5a, E5b, E6

QZSS:L1, L2, L5, L6

L-Band:B2b PPP (Only for the Asian-Pacific region)

Channels: 1408

Cold start:< 30 seconds

Warm start: < 20 seconds

Hot start < 5 seconds

RTK signal initialization: < 5 seconds

Initialization reliability: > 99.9%

Update rate: 20 Hz

Battery: Rechargeable and built-in Lithium-ion battery x2 , 4.2 V ~ 6800 mAh

Operation system: Linux

Internal memory: 8 GB

Dimension: Φ148 mm x H74.5 mm

Weight: 1000 g

Storage temperature:-40℃ - +80℃

Operating temperature: -30℃ - +65℃

Water / dust proof: IP67
