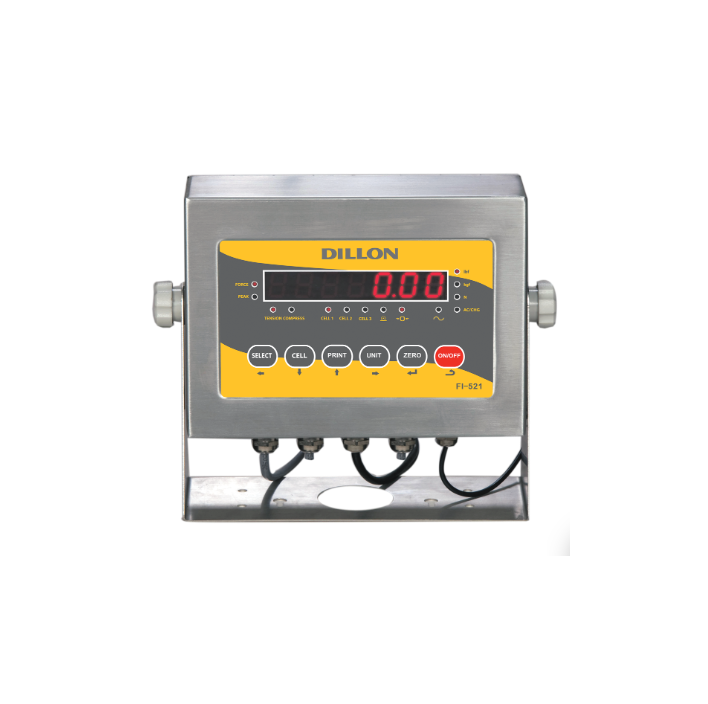

DILLON FI-521 测力计 (EU version; IP65)

EU version

Display:

+ 7 digits, 7-segment, 0.7″ (17 mm) ultra-bright LEDs with 14 annunciators

+ Display update rate: 10Hz

+ Max display range: -999,999~999,999

Keypad: 6 push buttons (select, cell, print, unit, zero, on/off)

Real clock: Built-in nonvolatile real time and date

Communication:

+ Serial Port 1: Full-duplex RS-232

+ Serial Port 2: Full-duplex RS-232 or half-duplex RS485

+ Baud Rate: Selectable 1200-2400-4800-9600-19200/38400-57600 bps

+ Data Output Format: 8N1, 7O1, 7E1

+Serial Output: Select up to 14 additional data parameters

+ RS-485: 0-5VDC

+ Analog Output: 0~2.5VDC (≤ 2.5mA)

+ Remote Input: Select,cell, print, unit, zero, off

+ Setpoint 1 & 2: 5~24VDC (.5A max) external, 5~8VDC (≤ .1A) internal

Power supply: 220V (Type C) AC 50/60 Hz

Details

Datasheet
