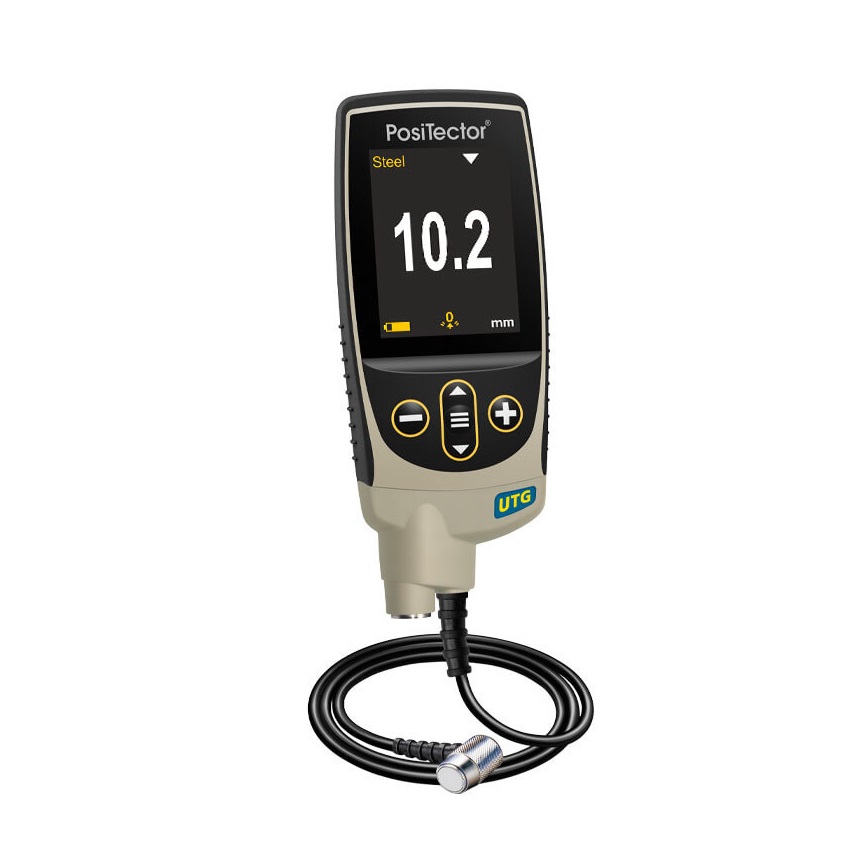

DEFELSKO UTG M3 超声波测厚仪 (Advanced)

Application: Features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.

Probe Style: 5 MHz Contact

Mode: Single Echo

Measurement Range: 1.00 to 125.00 mm (0.040" to 5.000")

Mode: Multiple Echo

Measurement Range: 2.50 to 60.00 mm (0.100" to 2.500")

Thru-Paint Capability: yes

Measurement Rate – Normal: 4 readings/sec

Measurement Scans: 4readings/sec

Resolution: 0.01 mm (0.001")

Accuracy: ±0.03 mm (±0.001")

Hi contrast reversible color LCD

Storage of 100,000 readings in up to 1,000 batches and sub-batch

Store thickness, profile and environmental measurements  in individual batches

Onscreen help, real time graphing, picture prompting, and more...

Onscreen batch annotation—add notes and change batch names with the built-in keyboard

WiFi technology wirelessly synchronizes with PosiTector.net, downloads software updates, and connects to mobile devices for expanded functionality

Data transfer via USB to a PC or via Wireless Technology

A-Scan with adjustable Gain and screen capture

B-Scan—displays a cross sectional profile of the test material

Size: 146 x 61 x 28 mm (5.75" x 2.4" x 1.1")

Weight: 140 g (4.9 oz.) without batteries

ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster, belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net account
