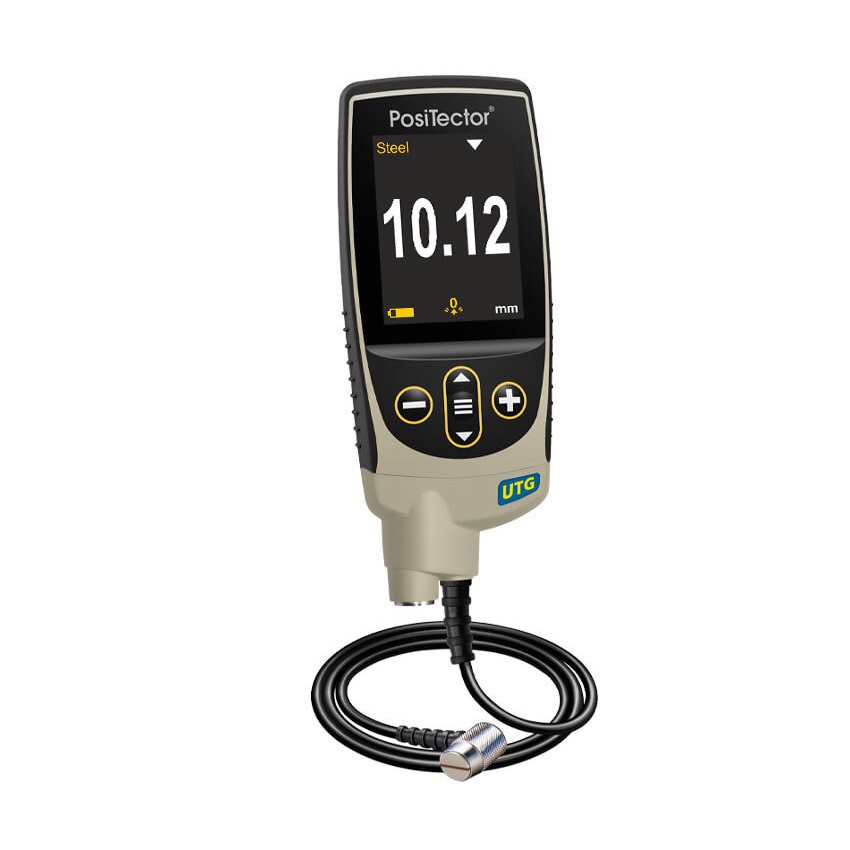

DEFELSKO UTG C3 超声波测厚仪 (Advanced)

Application: Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

Probe Style: 5 MHz Dual Element

Mode: Single Echo

Measurement Range: 1.00 to 125.00 mm (0.040" to 5.000")

Thru-Paint Capability: no

Measurement Rate – Normal: 6 readings/sec

Measurement Rate – Normal: 20 readings/sec

Resolution: 0.01 mm (0.001")

Accuracy: ±0.03 mm (±0.001")

Hi contrast reversible color LCD

Storage of 100,000 readings in up to 1,000 batches and sub-batches

Store thickness, profile and environmental measurements  in individual batches

Onscreen help, real time graphing, picture prompting, and more...

Onscreen batch annotation—add notes and change batch names with the built-in keyboard

WiFi technology wirelessly synchronizes with PosiTector.net, downloads software updates, and connects to mobile devices for expanded functionality

Data transfer via USB to a PC or via Wireless Technology

A-Scan with adjustable Gain and screen capture

B-Scan—displays a cross sectional profile of the test material

Automatic V-Path compensation for thin materials

Size: 146 x 61 x 28 mm (5.75" x 2.4" x 1.1")

Weight: 140 g (4.9 oz.) without batteries

ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster, belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net ac
