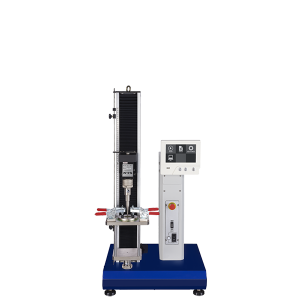

Cometech QC-548D2-M 台式单柱拉力试验机 (5kN)

Max. Capacity:  5kN

Units:  Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force resolution: 23 bits

Force Precision: 1/100,000

Test troke: 800 mm (excluding grips)

Stroke resolution: 0.0125mm

Speed range:  8 ~ 550 mm/min (adjustable)

PC-Port: RJ45(TCP/IP)

Data sampling:  Maximum 400 Hz

Hardware Safety Protection: Up and down limit & Emergency   Stop Button Protection

Motor type: Servo Motor

Power Supply: Single phase 200 ~ 240VAC,5A

Dimension:  50× 53 × 145 cm

Weight: 80 kg

Option:

- Display panel: EM2FTP-001 or  Software: SM2F0-04 or all (nessesary)

- Long extensometer QC-557

- Grips (nessesary)
