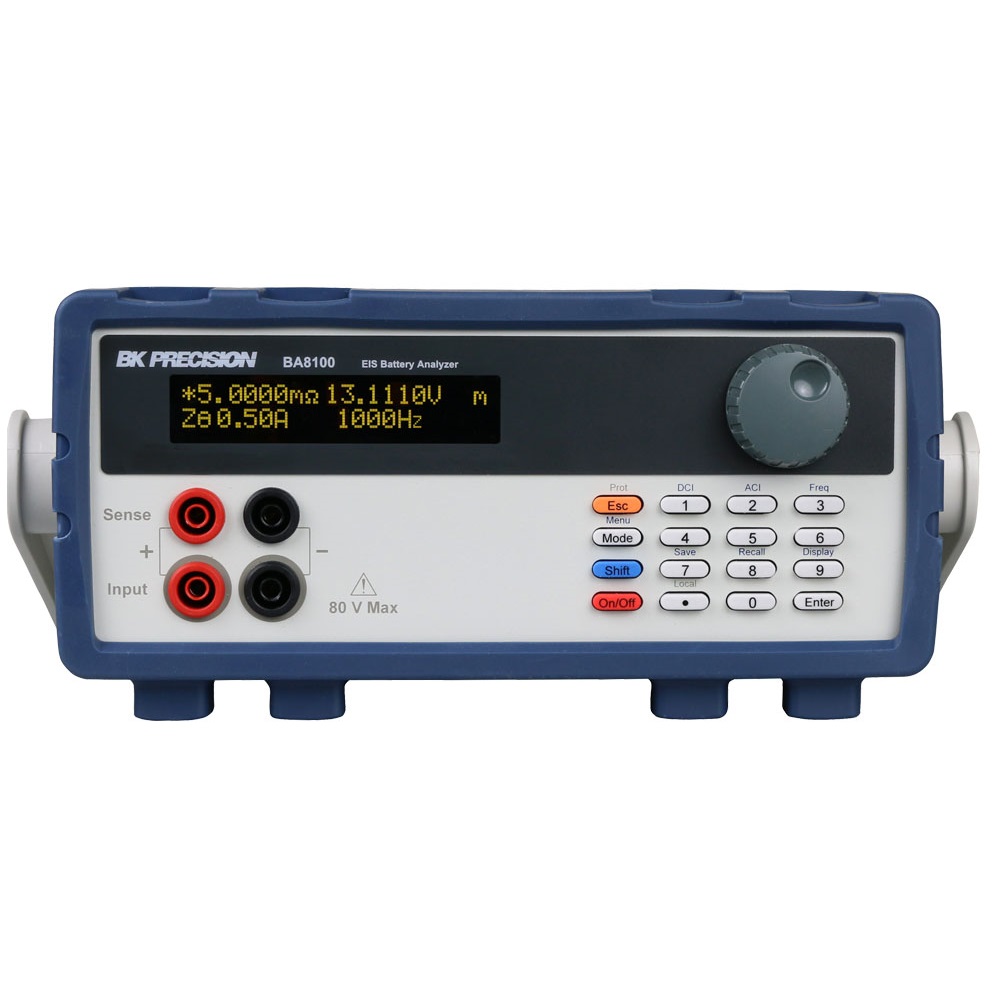

BKPRECISION BA8100 EIS电池分析仪

Impedance Z Accuracy: ±(0.5% of reading + 5 µΩ)

Rated Voltage: 0.5 V to 80 V

Rated Current: 0.5 A to 3 A DC

Frequency Range: 0.05 Hz to 10 kHz

AC Input: 100 VAC to 240 VAC, 50/60 Hz

 UUT Connector: 4-terminal banana jack

I/O Interfaces: LAN, USB (Virtual COM), RS232

 Operating Temperature: 32° F to 104° F (0° C to 40° C)

 Storage Temperature :14° F to 122° F (-10° C to 50° C)

 Dimension: (W x H x D) 8.5 “ x 3.5” x 14.6” (215 x 90 x 370 mm)

 Weight: 9.9 lbs (4.5 kg)

 Software: Bundled software for fixed or frequency sweep, Nyquist and Bode plots

 Standard Accessories: Power cord, kelvin clip test leads, calibration certificate,

calibration test fixture (TLC81)
