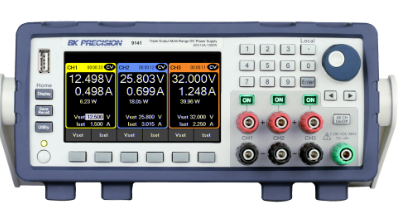

BKPRECISION 9141 三路输出多量程直流电源 (60 V / 4 A, 300 W)

Max Output Voltage per Channel: 60V

Max Output Current per Channel: 4A

Max Output Power: 300W

"For detail specification please check the attachment below!"


General

Remote Sense Compensation: 1 V

Command Response Time (4): 10 ms

Power Factor:

0.98 / 115 VAC

0.94 / 230 VAC

I/O Interfaces: USB (USBTMC-compliant and virtual COM), LAN (1.5 LXI device specification 2016), GPIB (optional)

AC Line Input: 100 VAC to 240 VAC ± 10%, 47 Hz to 63 Hz

Maximum Rated Input Power: 500 VA

Temperature Ratings

Operation: 32 °F to 104 °F (0 °C to 40 °C)

Storage: 14 °F to 158 °F (-10 °C to 70 °C)

Dimensions: (W x H x D) 8.4” x 3.5” x 13” (213 x 88 x 330 mm)

Weight: 11 lbs (5 kg)

Standard Accessories: Power cord, test report & certificate of

calibration

Optional Accessories: Rack mount kit (RK2US)

Details

MANUAL


DATASHEET


COMPARISON GUIDE


PROGRAMMING MANUAL
