Aqualabo S200 二氧化氯分析仪 (0~5 mg/L, -2~16pH)

Technical characteristics sensor

Measured parameter

Measuring principle Chlorine Dioxide

Measuring principle pH: Potentiostatic with one gold ring

                                        Reference used on the pH probe

                                        Combined electrode reference/measure

Measuring range: Chlorine dioxide: 0.00 to 5.00 mg/L

                             pH: -2.00 to +16.00

                             Temperature: -30.00 to +140.00 °C

Resolution: Chlorine dioxide: 0.01 mg/L

                    pH: 0.01 mV Resistor > 5x1011 Ω

                   Temperature: 0.1 °C/Pt100/Pt1000

Accuracy:  +/- 2 % Full Scale

Response time: 30s

Chlorine dioxyde sensor

Material in contact with the middle: Glass/gold

Water temperature max.: 70 °C

Pressure max: 8 bars at 20 °C

Flow: Between 40 and 120 l/h

          Fluctuations Compensated and checked

Temperature: Pt1000

pH sensor

Water temperature max.: 70 °C

Pressure max: 8 bars at 20 °C

Flow: Between 40 and 120 l/h

           Fluctuations Compensated and checked

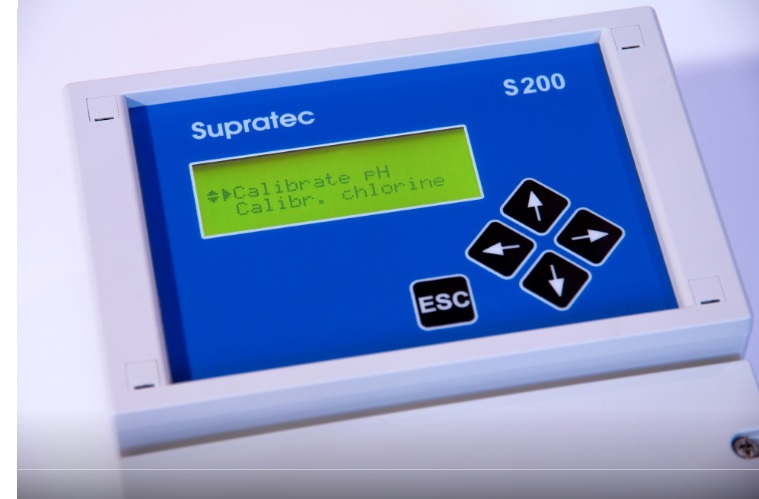

Constructional design wall-mounted casing S200

Mains power: 230 V/AC, +/- 10 % (50/60 Hz)

                        Consumption 16 VA

Display: LCD display, 4x20 characters, alphanumeric, backlight

              Easy operation by means of 5 keys

Dimensions (WxHxD): 160 x 165 x 85 mm

Weight: 1,1 Kg

Protection class: IP 65

Operating temperature: -20 to + 55 °C

                                      Max 90 % relative humidity at 40 °C non-condensing

Storage temperature: -20 to +65 °C
