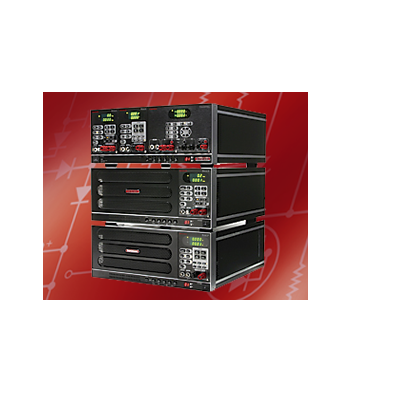

Ametek SLD-61-505-255 低功耗双输入可编程负载（255W，61V，505A）

Specications

Input Ratings

Voltage: +60V; -60V

Current: 50A; 5A

Power: 250W; 50W

Minimum Voltage: 0.4V @50A; 0.4V @ 5A

CC Mode

Range: 0 - 5A/50A; 0 - 0.5A/5A

Resolution: 1.34/13.4mA;0.134/1.34mA

Accuracy: ±0.2% of (Setting + Range)

CR Mode:

Range 1: (Ω)(I>0.02% of rating): 1.2 -4500; 12-45000

Range 2: (Ω)(I>0.2% of rating): 0.04-1.2; 0.4-12

CV Mode

Range: 0 – 60V; 0 – (-60)V

Resolution: 16mV

Accuracy: ±0.2% of (Setting + Range)

Short Mode

Resistance: 8mΩ; 0.08Ω

Current: 50A; 5A

Dynamic Mode

T High/T Low 50µs to 9.999s

Slew Rate(mA/µs): 4-200 40-2000; 0.4-20 4-200

Resolution (mA/µs): 0.8 8; 0.08 0.8

Accuracy: ±(10% +10µs)

4 1/2 DVM:

Range 15V / 60.00V

Resolution: 0.001 V / 0.01 V

Accuracy: ±0.05% of (Reading + Range)

4 1/2 DAM:

Range: 15A / 50A; 1.5A/5A

Resolution: 1mA/10mA; 0.1mA/1mA

Accuracy: ±0.2% of (Reading + Range)

Load ON Voltage

Range: 0.1-25V

Resolution: 0.1V

Accuracy: 1% of Setting +0.25V

Load OFF Voltage

Range: 0-25V

Resolution: 1mV

Accuracy: 1% of Setting +0.25V
