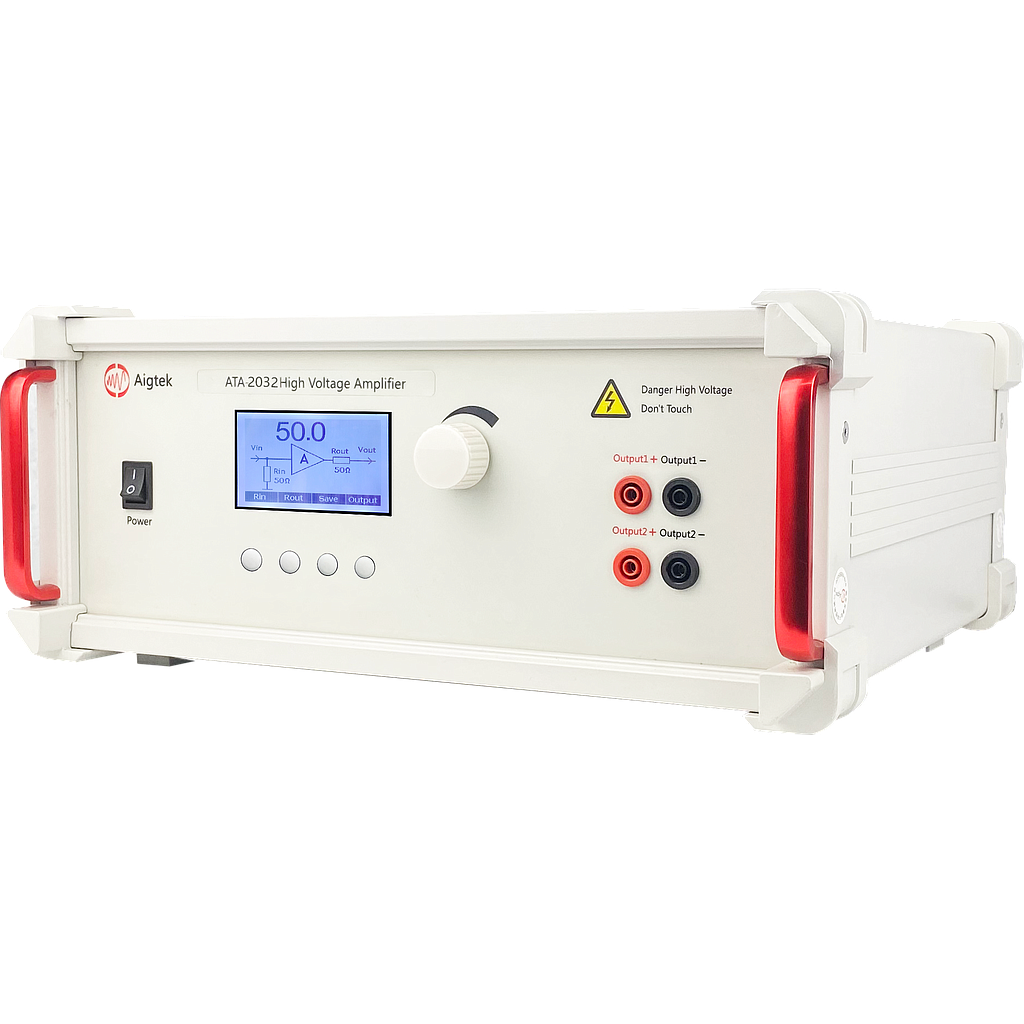

Aigtek ATA-2032 高压放大器 ((-3dB) DC ~ 500kHz, 300Vp-p (±150Vp), 120mAp, 18Wp, 2CH)

Model: ATA-2032

Number of channels: 2

Output form: Single output

Bandwidth(-3dB: DC~500kHz

Maximum output voltage: 300Vp-p(±150Vp)

Maximum output current: 120mAp

Maximum output power: 18Wp

Fuse: 2A/250V

Voltage gain: x0~50(0.1 step)

Load RL upper limit: ≥1.25kΩ

Output resistance: 50Ω /2.5kΩ (Customizable)

Input resistance :50Ω / 5kΩ

Input amplitude :0~10Vp-pMAX

Output voltage error: ≤±3% FS@1kHz

Voltage monitoring :100:1(±5%)

Slew Rate: 500V/μs

Total harmonic distortion (THD): ≤0.1%@1kHz,100Vp-p

Output voltage Zero-point drift: ≤0.1V

Signal-noise ratio(SNR): ≥80dB

Output Connector: 4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%,50Hz

Operating temperature :0℃~45℃

Storage temperature :-20℃~50℃

Humidity: ≤80%RH,No condensation

Size (W * H * D): 365*163*365mm
