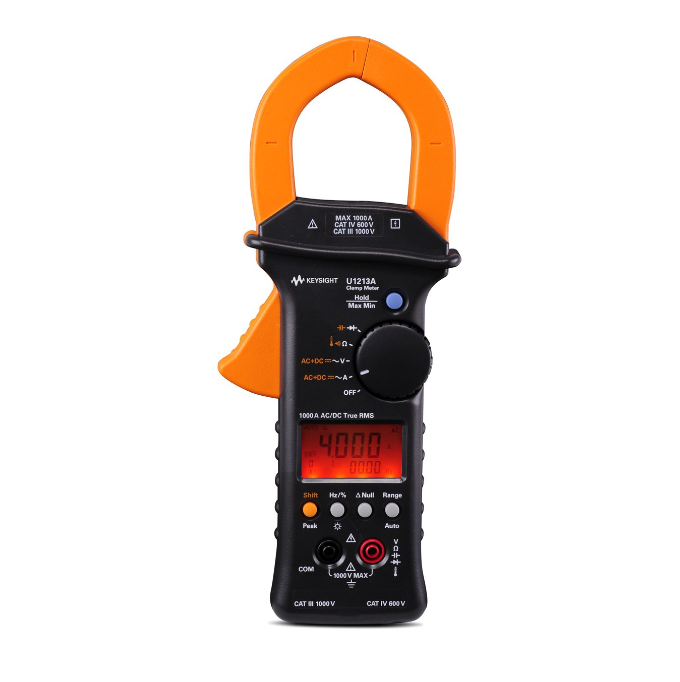

KEYSIGHT U1213A 手持式钳形表 (AC/DC 1000A; True RMS; AC+DC)

- True RMS: AC+DC

- Voltage DC: 4 V, 40 V / 0.2%, 400 V, 1000 V /0.5%

  Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V

- Voltage AC: 4 V, 40 V, 400 V, 1000 V /1%

  Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V

- Voltage AC+DC: 4 V, 40 V, 400 V, 1000 V /1.5 %

  Resolution:   0.001 V, 0.001 V, 0.1 V, 1 V

- Resistance: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ

  Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.1 kΩ, 0.001 MΩ, 0.01 MΩ

- Diode: Yes

- Current DC: 40 A, 400 A 1.5%, 1000 A ,2%

  Resolution: 0.01 A, 0.1 A, 1 A

- Current AC: 40 A, 400 A, 1000 A ,2%

  Resolution: 0.01 A, 0.1 A, 1 A

- Current AC+DC: 40 A, 400 A, 1000 A /3.5%

  Resolution: 0.01 A, 0.1 A, 1 A

- Capacitance: 4 μF, 40 μF, 400 μF, 4000 μF

  Resolution: 0.001 μF, 0.01 μF, 0.1 μF, 1 μF

- Temperature type K:–200 - 1372 oC (option)

- Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz, 999.9 kHz /0.2%

  Resolution: 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz, 0.1 kHz

Power supply: Battery 9V

Dimensions: 106 mm (W) X 260 mm (L) X 43 mm (H)

Included Accessories: Test Lead Set; Soft Carrying Case; Quick Start Guide; Batteries; Certificate of Calibration

Details

Datasheet


Brouchures


Optional Accessories

U1175A: Soft carrying case

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1186A: Thermocouple (K-type, 1m) and adapter

U1185A: Thermocouple (J-type) and adaptor

U1184A: Adaptor, temperature probe

U1163A: Grabbers, SMT

U1164A: Test probes, fine tip

U1181A: Immersion probe type K

U1182A: Surface probe, industrial

U1183A: Probe, air

U1162A: Alligator clip

U1180A: T/C adapter + lead kit, J and K type

U1187A: Thermocouple (K-type, 3.5m) and adapter

U1176A: LED flash light

U1168B: Test lead kit

U1117A: Infrared (IR)-to-Bluetooth class 1 (100meter) adapter with Mfi

U1115A :Bluetooth class 1 (100meter) remote logging display

U1118A: Remote connectivity kit (100meter) with U1115A and U1117A

U1173B: IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V
