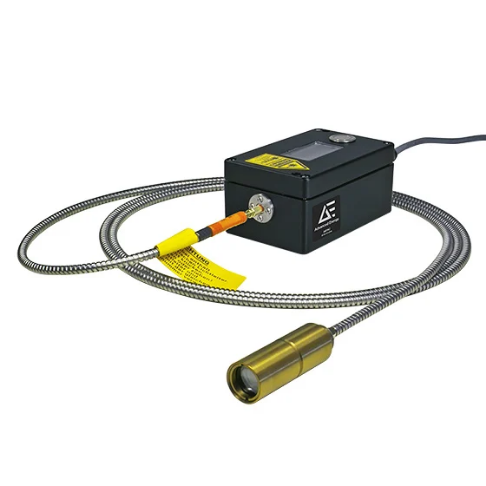

Advanced Energy IGA 50-LO plus Metal Applications Pyrometer (300 ~ 2500°C)

- Temperature Range:
300 ~ 1300°C (572 ~ 2372°F) (MB 13)
350 ~ 1800°C (1112 ~ 3272°F) (MB 18)
450 ~ 2500°C (842 ~ 4532°F) (MB 25)
250 ~ 1350°C (482 ~ 2462°F) (MB 13, 5L)
300 ~ 2000°C (572 ~ 3632°F) (MB 20L)
350 ~ 2500°C (662 ~ 4532°F) (MB 25L)
- Optics Head:
Optical head I: Adjusted Measuring Distance a to: 700mm
Optical head II (fixed adjusted): Adjusted a to: 4500mm
Optical head II (focusable): Range: 340 ~ 4500mm
- Spectral Ranges: 1.45 ~ 1.8 μm
- Resolution:
Inteface and display: 0.1 °C
Analog output: < 0.1% of the adjusted temperature range
- Measurement Uncertainty (ε = 1, t90 = 1 s, Tamb = 23°C):
Below 1500°C: 0.3% of measured value in °C+ 1°C
Above 1500°C: 0.5% of measured value in °C
- Repeatability (ε = 1, t90 = 1 s, Tamb = 23°C): 0.1% of reading in °C + 1°C
- Emissivity ε: 20 ~ 100% adjustable inside the instrument or via interface in steps of 0.1%
Electrical:
- Power Supply: 24 VAC or DC (12 ~ 30 VAC or DC) (AC: 48 ~ 62 Hz)
- Power Consumption: Max 2 W
Environmental
- Protection system: IP54
- Operating Temperature: 0 ~ 60°C (32 ~ 140°F) on the converter, up to 250°C (482°F) on side of fiber/ optical head
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Weight:
Converter: 600 g (≈1.32 lbs)
Optical head II: 140 g (≈4.94 oz)
Fiber (2.5 m): 250 g (≈8.82 oz)
- CE Label: According to EU directives about electromagnetical immunity
Interface and Communication:
- Analog Output: Linear 0 ~ 20 mA or 4 ~ 20 mA, DC, switchable; load max. 500 Ohm
- Interface: Switchable: RS232 or RS485 addressable, half duplex; baud rate 2.4 up to 115.2 kB
- Display: Illuminated LC display for temperature indication or parameter settings
- Scope of Delivery: Converter, optical fiber and optical head as per configuration, works certificate, PC software InfraWin, and user manual.
