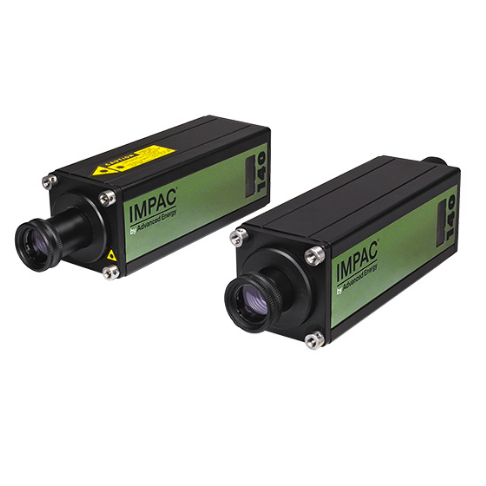

Advanced Energy IGA 140/23 Metal Applications Pyrometer (50 ~ 1800°C)

- Temperature Range:
50 ~ 700°C (122 ~ 1292°F) (MB 7)
75 ~ 900°C (167 ~ 1652°F) (MB 9)
100 ~ 1300°C (212 ~ 2372°F) (MB 13)
150 ~ 1800°C (302 ~ 3272°F) (MB 18)
- Optics:
3 focusable optics:
a = 105 ~ 150 mm
a = 190 ~ 440 mm
a = 320 ~ 4300 mm
- Spectral Ranges: 2.0 ~ 2.6 μm
- Infrared Detector: Indium Gallium Arsenide photodiode (extended InGaAs)
- Resolution:
Interface and display: 0.1°C
16 bit D/A converter for analog output
- Measurement Uncertainty (ε = 1, t90 = 1 s, Tamb = 23°C):
< 400°C: 2°C
400 ~ 1500°C: 0.3% of reading in °C + 2°C
> 1500°C: 0.5% of reading in °C
- Repeatability (ε = 1, t90 = 1 s, Tamb = 23°C): 0.1% of measured value in °C + 1°C
- Emissivity ε: 10 to 100% adjustable in steps of 0.1%
Electrical:
- Power Supply: 24 V AC/DC (14 ~ 30 V AC/DC) (AC: 48 ~ 62 Hz)
- Power Consumption: Max 7.5W
- Load: 0 ~ 500 Ω
Environmental
- Protection system: IP65 (according to DIN 40 050)
- Ambient Temperature: 0 ~ 70°C (32 ~ 158°F) at housing
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Weight: ≈550 g (≈1.21 lbs)
- CE Label: According to EU directives about electromagnetical immunity
Communication
- Analog Output:
0 ~ 20 mA or 4 ~ 20 mA (linear), switchable;
- Test Current Output: 10 mA or 12 mA by pressing test key
- Scope of Delivery: Pyrometer with one optics, works certificate with 3 measuring points, InfraWin software
