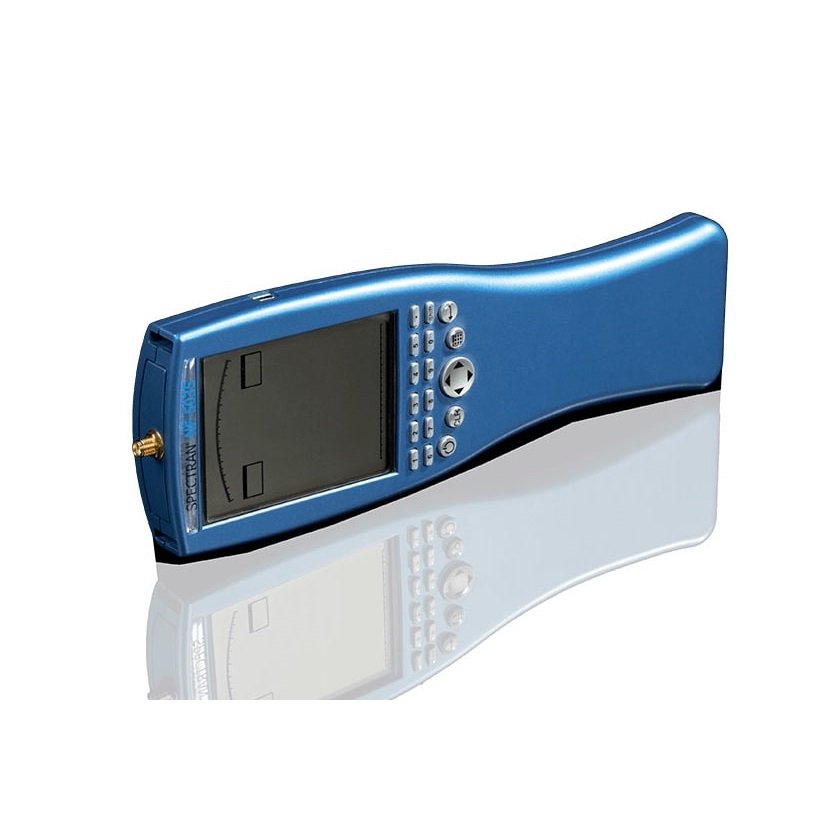

AARONIA NF-5035S 便携式频谱分析仪 (1Hz - 1MHz)

Vastly expanded range

Measurement range up to DIN/VDE 0848

65 MSPS

Lots of options

Frequency range: 1Hz to 1MHz (optional 30MHz)

Typ. level range E-Field: 1V/m to 50kV/m

Typ. level range H-Field: 100pT to 20mT

Typ. level range Analog in: 200nV to 200mV / -150dBm (Hz)

Typ. accuracy: 3%

External SMA signal input

USB 2.0 Interface

Real-time FFT/DFT spectrum display

Resolution (RBW): 0,3Hz to 10MHz (1-3-10 step)

Detectors: RMS, Min/Max Units: V, V/m, T, G, A/m

Demodulator: AM, FM

Simultaneous M-Display X, Y, Z axes

3D magnetic field measurement

True RMS signal strength measurement

Average (AVG) measurement

PEAK Hold

Frequency and signal strength display

High resolution multifunction display

DIN/VDE 0848 exposure limit calculation

Internal data logger

Internet flash software updates

Details

Datasheet
