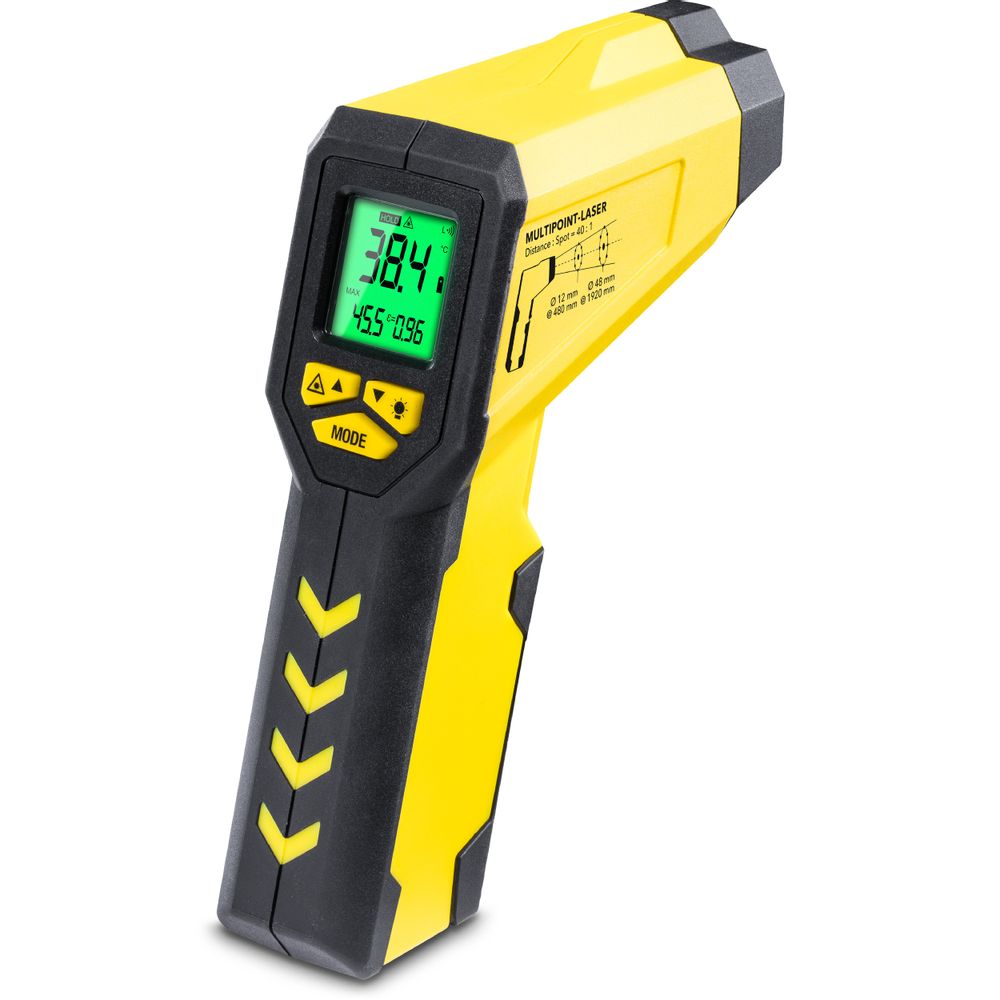

Trotec TP7 Multi-Point Laser Thermometer (-50 °C / +1000 °C; D:S 40:1)

  • 생산업체:Trotec
    Model: TP7
    P/N: 3.510.003.012
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Optics:

Optical resolution (D:S): 16:1

Smallest measuring spot: 25.4 mm

Infrared temperature sensor [°C]:

Min. measuring range | Infrared temperature sensor [°C]: -50

Max. measuring range | Infrared temperature sensor [°C]: 1000

Max. accuracy [°C] | Infrared temperature sensor:

Accuracy -50 °C to 20 °C (-58 °F to 68 °F): ± 2.5

Accuracy 21 °C to 300 °C: ± 1

Accuracy 301 °C to 1,000 °C: ± 1.5

Repeatability -50 °C to 20 °C: ± 1.3

Repeatability 21 °C to 1,000 °C: ± 0.8 / ± 0.5

Infrared temperature sensor [°F]:

Min. measuring range | Infrared temperature sensor [°F]: -58

Max. measuring range | Infrared temperature sensor [°F]: 1832

Accuracy ± min. [°F]: 4.5

Accuracy Max. [%]: 1

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 50

Operation – min. relative humidity [% r.F.]: 10

Operation - max. relative humidity (non-condensing) [%]: 90

Storage - min. temperature [°C]: -10

Storage - max. temperature [°C]: 60

Storage - max. relative humidity (non-condensing) [%]: 80

Display:

LCD: ✓

Interfaces:

USB: -

Plug connection for type K temperature sensor: -

Memory organisation:

Internal flash memory: -

Device control:

Push buttons: ✓

Membrane keyboard: -

Type of protection:

IP54: ✓

IP65: -

Temperature sensor:

Response time: < 150 ms

Spectral sensitivity: 8 ~ 14 µm

Laser (target display):

Class: class 2

Wavelength [nm]: 630 ~ 670

Power [mW]: 1

Power supply:

Internal (battery): 9V battery

External (USB):

Housing design:

Plastics: ✓

Dimensions:

Length (packaging excluded) [mm]: 122

Width (packaging excluded) [mm]: 49

Height (packaging excluded) [mm]: 160

Weight:

(packaging excluded) [kg]: 0.224
