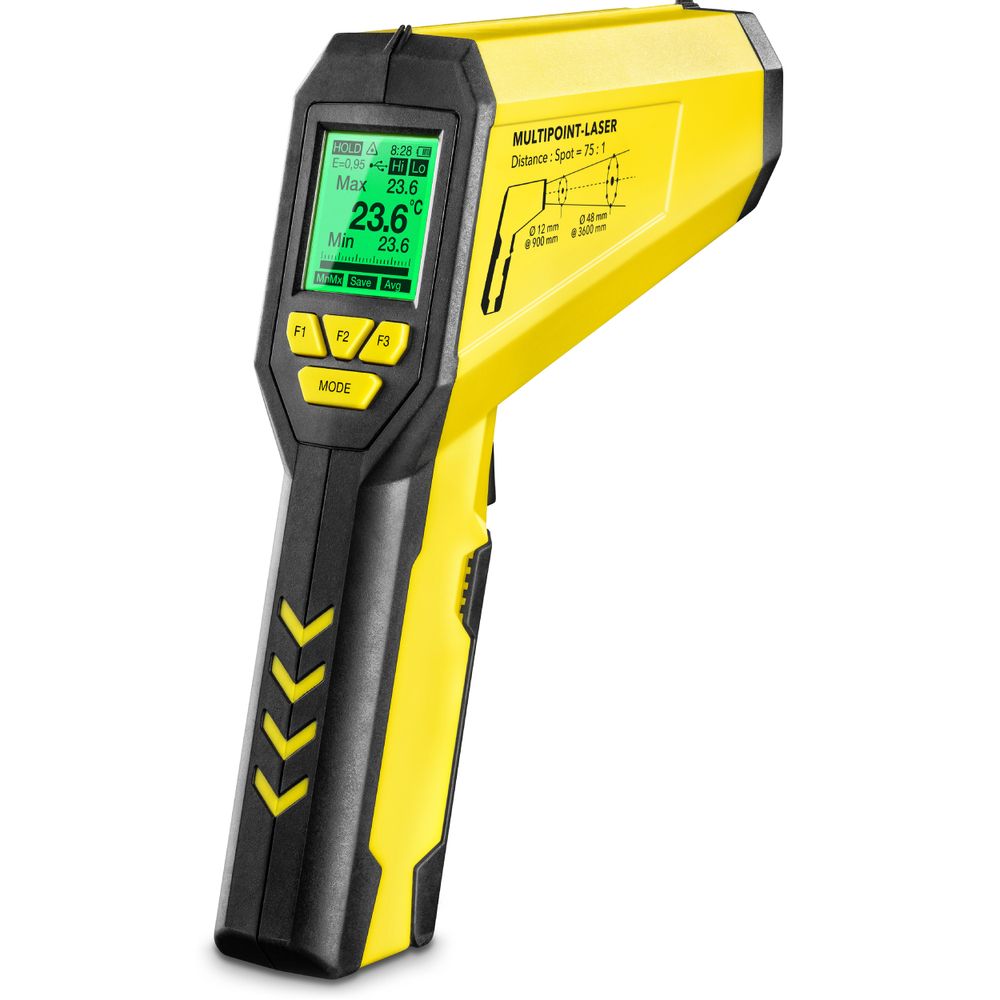

Trotec TP10 Multi-Point Laser Thermometer (-50 °C / 1850 °C D:S 75:1)

  • 생산업체:Trotec
    Model: TP10
    P/N: 3.510.003.046
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Optics:

Optical resolution (D:S): 3:01

Smallest measuring spot: 18mm @ 1.350 mm

Infrared temperature sensor [°C]:

Min. measuring range | Infrared temperature sensor [°C]: -50

Max. measuring range | Infrared temperature sensor [°C]: 1850

Accuracy -50 °C to 20 °C (-58 °F to 68 °F): ± 3.0 (5.4)

Repeatability -50 °C to 20 °C: ± 1.5 (2.7)

Accuracy 20 °C to 500 °C (68 °F to 932 °F): ±1.0 % ±1.0 (1.8)

Accuracy 500 °C to 1,000 °C (932 °F to 1,832 °F): ± 1.5 %

Accuracy 1,000 °C to 1,850 °C (1832 °F to 3,362 °F): ± 2.0 %

Repeatability 20 °C to 1,000 °C (68 °F to 1,832 °F): ±0.5 % ±0.5 (0.9)

Repeatability 1,000 °C to 1,850 °C (1832 °F to 3,362 °F): ± 1.0 %

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 50

Operation – min. relative humidity [% r.F.]: 10

Operation - max. relative humidity (non-condensing) [%]: 90

Storage - min. temperature [°C]: -10

Storage - max. temperature [°C]: 60

Storage - max. relative humidity (non-condensing) [%]: 80

Display:

LCD: ✓

Monochrome: ✓

Interfaces:

USB: ✓

Plug connection for type K temperature sensor: ✓

Memory organisation:

Internal flash memory: 100 storable measured values

Device control:

Push buttons: ✓

Membrane keyboard: -

Type of protection:

IP54: ✓

IP65: -

Temperature sensor:

Response time: 150 ms

Spectral sensitivity: 8 ~ 14 µm

Laser (target display):

Class: Class 2 (ll)

Wavelength [nm]: 630 ~ 670

Power [mW]: 1

Power supply:

Internal (battery): 9V battery

External (USB): ✓

Housing design:

Plastics: ✓

Dimensions:

Length (packaging excluded) [mm]: 168

Width (packaging excluded) [mm]: 56

Height (packaging excluded) [mm]: 225

Weight:

(packaging excluded) [kg]: 0.35
