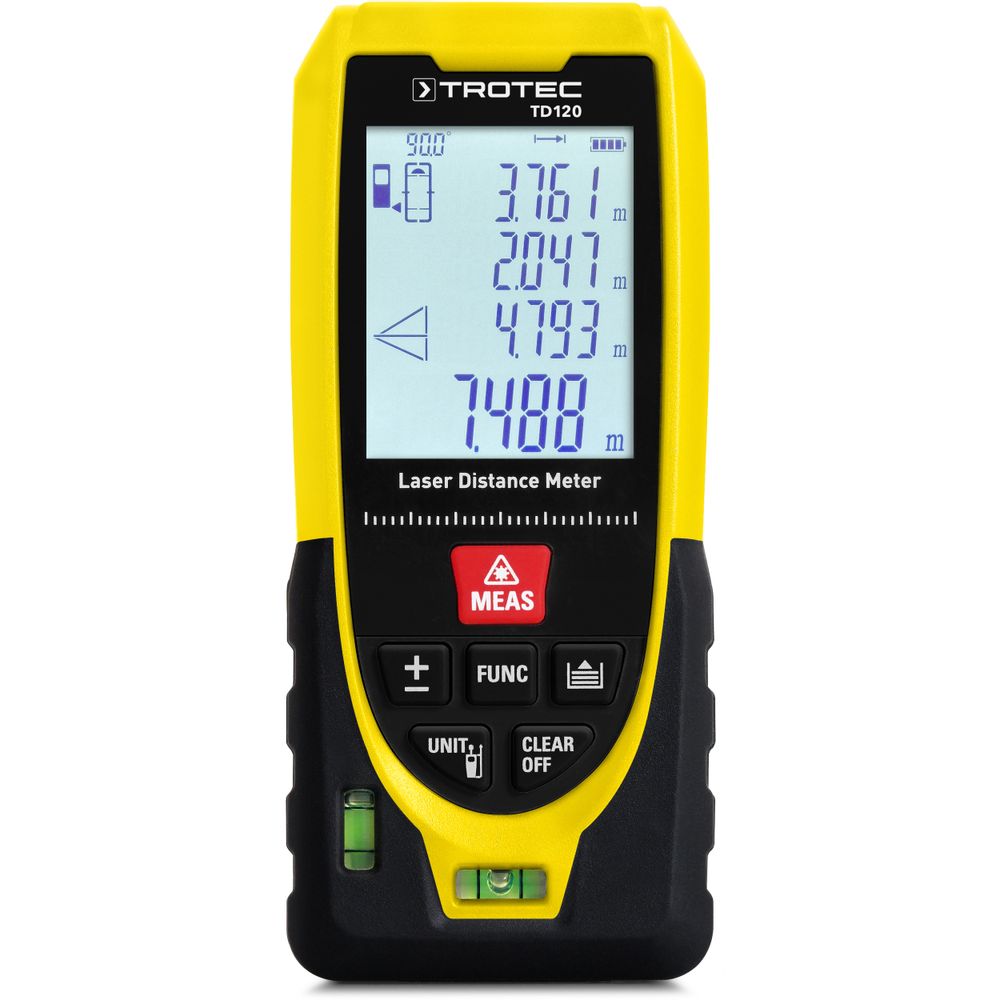

Trotec TD120 Laser range finder (0.05~120m; ± 1.5 mm)

  • 생산업체:Trotec
    Model: TD120
    P/N: 3.510.001.140
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Distance measurement:

Min. measuring range [m]: 0.05

Max. measuring range [m]: 120

Min. measuring range [ft]: 0.2

Max. measuring range [ft]: 394

Resolution: 1 mm

Typical measuring tolerance: +/-1.5 mm

Inclination measurement:

Measuring range | Inclination measurement: 360 °

Messgenauigkeit typ.: ±0.5°

Laser:

Ø of the laser point at distance 10 m [mm]: 10

Ø of the laser point at distance 20 m [mm]: 20

Ø of the laser point at distance 30 m [mm]: 30

class: 2

output < [mW]: 1

Memory organisation:  Store up to 99 measurements

Display:

Backlit display: ✓

Monochrome: ✓

Device control:  Push buttons: ✓

Interfaces:

Bluetooth: -

Micro-USB: -

Housing design:  Plastics: ✓

Type of protection:  IP40: ✓

Power supply:  Internal (battery): 2 x 1.5V AAA

Ambient conditions:

Operation - min. temperature [°C]: -10

Operation - max. temperature [°C]: 50

Operation - min. temperature [°F]: 14

Operation - max. temperature [°F]: 122

Storage - min. temperature [°C]: -20

Storage - max. temperature [°C]: 60

Dimensions:

Length (packaging excluded) [mm]: 27

Width (packaging excluded) [mm]: 50

Height (packaging excluded) [mm]: 115

Weight:  (packaging excluded) [kg]: 0.128
