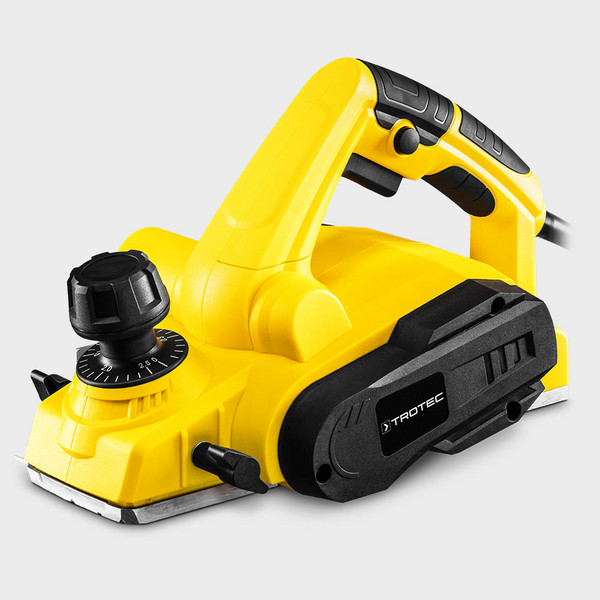

Trotec PPLS 10-800 Electric planer (0 - 17000 min-1; 0 – 2.5 mm)

Technical data:

Power input [W]: 800

Idle speed: 0 - 17.000 min-1

Planing width [mm]: 82

Cutting depth: 0 – 2.5 mm

Rebating depth: max. 11 mm

Electrical values:

Mains connection: 220 - 240 V, 50 Hz

Nominal current consumption [A]: 3.26

Recommended fusing [A]: 10

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 2

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 85

Sound power level [dB]: 96

Uncertainty (K) [dB]: 3

Weighted acceleration, typically:

Hand-arm-vibration ah [m/s²]: 6.47

Uncertainty (K) [m/s²]: 1.5

Safety feature:

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 275

Width (packaging excluded) [mm]: 163

Height (packaging excluded) [mm]: 190

Weight:

(packaging excluded) [kg]: 3.5
