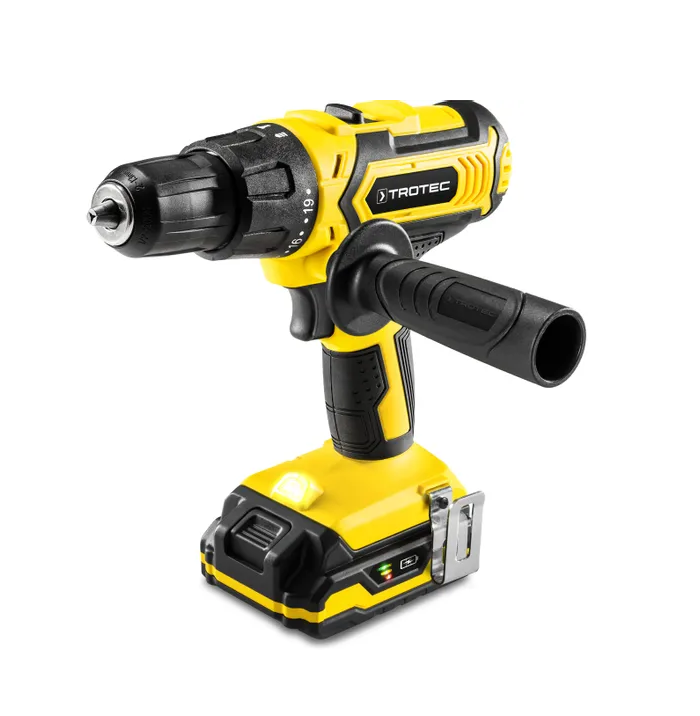

Trotec PHDS 11-20V Cordless Hammer Drill (0 - 1650; 40 Nm)

  • 생산업체:Trotec
    Model: PHDS 11-20V
    P/N: 4.410.000.502
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Technical data:

Number of speed levels: 2

Idle speed 1. Speed level: 0 - 440

Idle speed 2. Speed level: 0 - 1.650

Impact frequency combined 1. Speed level: 0 - 26.400 min-1

Number of torque settings: 20 + 1 + 1 (impact drilling setting)

Max. torque [Nm]: 40

Tool holder: Quick-release chuck

Max. chucking range [mm]: 13

Maximum drilling diameter:

Wood [mm]: 30

Metal [mm]: 13

Masonry / bricks [mm]: 15

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 74.34

Sound power level [dB(A)]: 85.34

Uncertainty K [dB]: 5

Vibration information according to EN 62841:

Vibration emission value impact drilling in brickwork (ah) [m/s²]: 14.493

Uncertainty (K) impact drilling in brickwork: 1.5

Vibration emission value for drilling in metal (ah) [m/s²]: 0.925

Uncertainty (K) drilling in metal: 1.5

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 2

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 65

Nominal current consumption [mA]: 2400

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 225

Width (packaging excluded) [mm]: 80

Height (packaging excluded) [mm]: 230

Weight:

(packaging excluded) [kg]: 2
