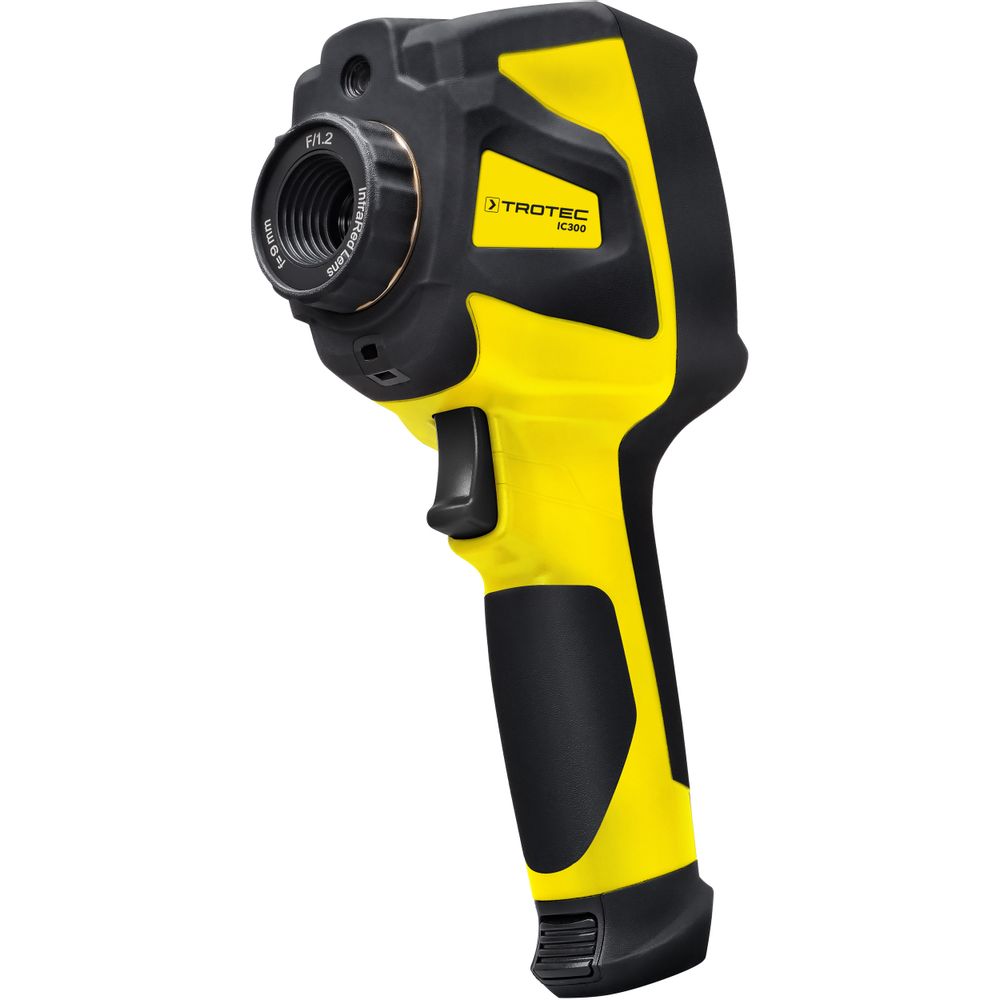

Trotec IC300 열화상 카메라 (256x192; -20 - 650° C)

  • 생산업체:Trotec
    Model: IC300
    P/N: 3.110.003.028
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Temperature (°C):

Min. measuring range [°C]: -20

Max. measuring range [°C]: 650

Max. accuracy: +/-2°C or +/-2% of the current measured value

Radiometric image performance:

Detector type: Focal Plane Array (FPA), uncooled microbolometer

Thermal sensitivity [30 °C]: <0.05 °C

Image refresh rate: 50 Hz

Geometric resolution: 1.89 mrad

Standard lens | Radiometric image performance: 41.5 ° x 31.1 °

Minimum focal length: 0.5 m

Field of vision (FOV): 41.5 ° x 31.1 °

Display:

LCD 3.5": ✓

Touch: ✓

Colour: ✓

Visual image performance (integrated digital camera):

Video norm: HIMI

Standard lens | Visual image performance (integrated digital camera): 65°

Interfaces:

USB (USB-C): ✓

Composite video (video out): ✓

Mains power 5V DC:

Wifi: ✓

Power supply:

Via battery (Li-ion): ✓

via mains power DC 5V: ✓

Operating time:

Up to 4 h: ✓

Device control:

Touch function: ✓

Push buttons: ✓

Memory organisation:

Storage medium: Internal 3.4GB (+8GB via microSD)

Radiometric file format: JPEG/HIR

Visual file format: JPEG

Ambient conditions:

Operation - min. temperature [°C]: -15

Operation - max. temperature [°C]: 50

Storage - min. temperature [°C]: -40

Storage - max. temperature [°C]: 70

Min. humidity [%]: 10

Max. humidity (non-condensing) [%]: 90

Type of protection:

IP54 IEC 529: ✓

Shock:

25G IEC 60068-2-29: ✓

Vibration:

2G IEC 60068-2-6: ✓

Housing design:

Plastics: ✓

Dimensions:

Length (packaging excluded) [mm]: 96

Width (packaging excluded) [mm]: 77

Height (packaging excluded) [mm]: 224

Weight:

(packaging excluded) [kg]: 0.5
