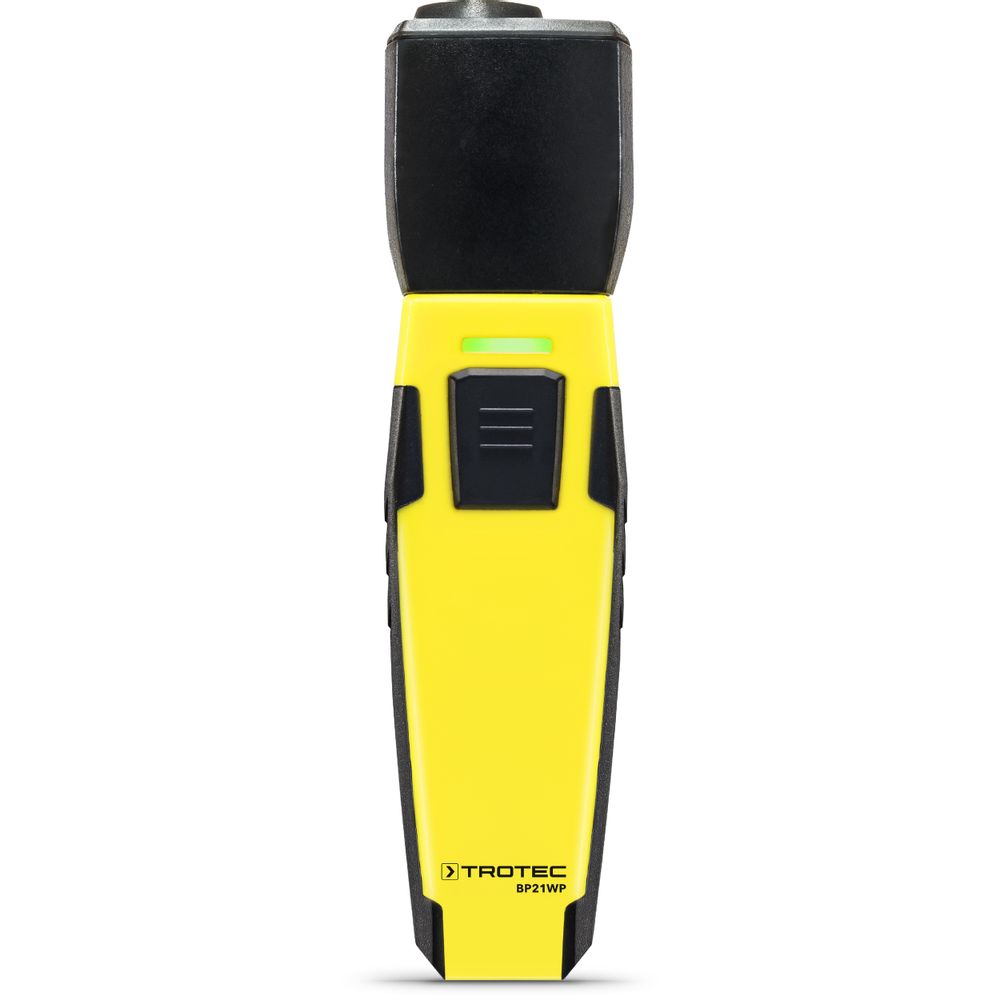

Trotec BP21WP Pyrometer (-30 °C / 250 °C; 10:1)

  • 생산업체:Trotec
    Model: BP21WP
    P/N: 3.510.006.031
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Optics:

Optical resolution (D:S): 10:01

Smallest measuring spot: Ø 12.7 mm (Distance 254 mm)

Infrared temperature sensor [°C]:

Min. measuring range | Infrared temperature sensor [°C]: -30

Max. measuring range | Infrared temperature sensor [°C]: 250

Max. accuracy [°C] | Infrared temperature sensor: ±3 °C (at >0 °C);   '±2 °C / ±2 % (at ≤ 0 °C)

Infrared temperature sensor [°F]:

Min. measuring range | Infrared temperature sensor [°F]: -22

Max. measuring range | Infrared temperature sensor [°F]: 482

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 50

Operation – min. relative humidity [% r.F.]: 10

Operation - max. relative humidity [% r.F.]: 90

Storage - min. temperature [°C]: -20

Storage - max. temperature [°C]: 60

Relative humidity during storage [%]: < 80% RH

Temperature sensor:

Response time: 0.3 s

Spectral sensitivity: 8 - 14 µm

Laser (target display):

Class: 2 (II)

Wavelength [nm]: 630-670 nm

Power [mW]: 1

Bluetooth:

4.0 (BLE): ✓

Max. transmission range: 10 m in open terrain

Power supply:

Internal (battery): ✓

Dimensions:

Length (packaging excluded) [mm]: 24.3

Width (packaging excluded) [mm]: 37

Height (packaging excluded) [mm]: 150.5

Weight:

(packaging excluded) [kg]: 0.11
