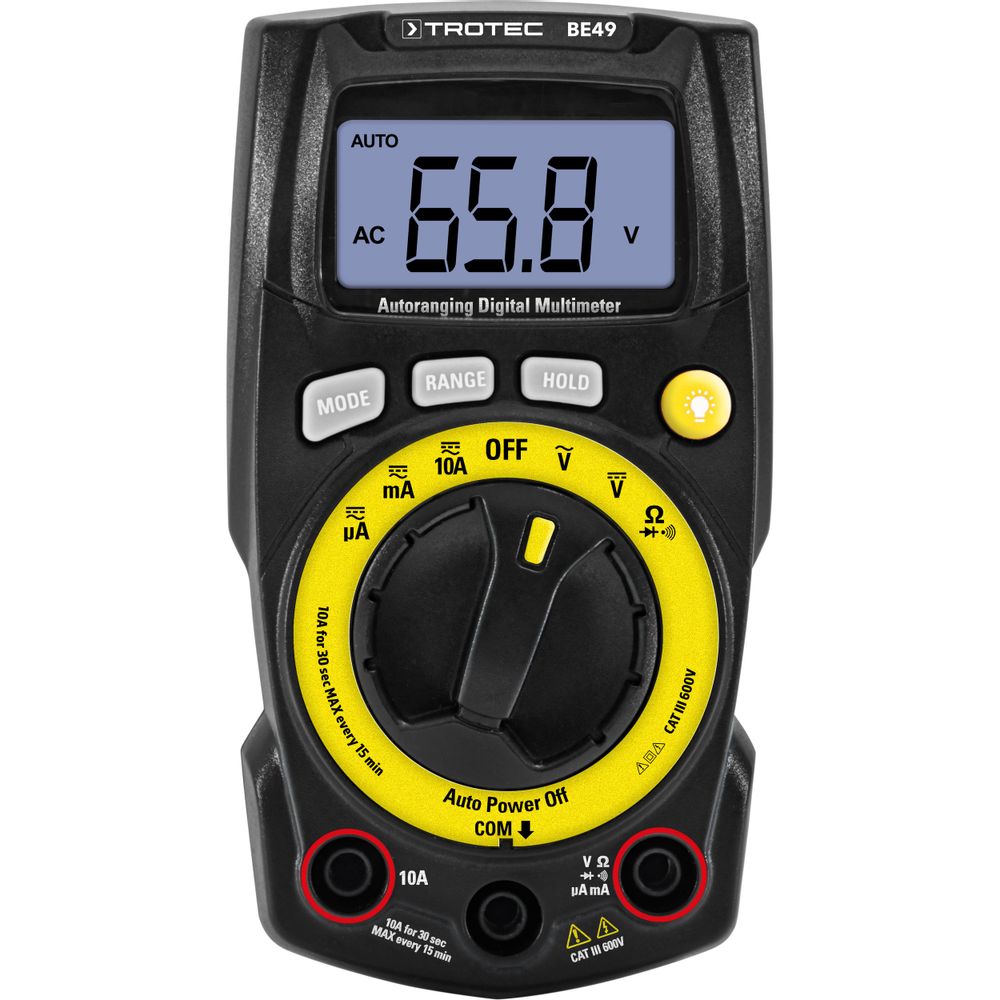

Trotec BE49 Digital Multimeter (600 V/10 A/ 20 MΩ; CAT III 600 V)

  • 생산업체:Trotec
    Model: BE49
    P/N: 3.510.205.249
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Diode test: max. testing current of 0.3 mA. opencircuit voltage of 1.5 V DC (typically)

Continuity test : An acoustic signal is emitted if the resistance amount to less than 150 Ω.

Input impedance: 10 MΩ (V DC and V AC)

Frequency range : 50 Hz to 400 Hz (AAC and VAC)

LC display: 2000 Count LCD

Measuring range exceeded: OL will be displayed.

Polarity: Automatic (no indication for positive); minus (-) sign for negative

Measuring speed: 2 x per second. nominal

Battery indication:  BAT is indicated if the battery voltage drops below the operating voltage threshold

Battery: 2 x AAA battery. 1.5 V

Fuses Measuring range µA/mA: 200 mA/600 V (fast acting);  Measuring range:  10 A: 10 A / 600 V (fast acting)

Operating temperature: 5°C to 40°C (41°F to 104°F)

Storage temperature: -20°C to 60°C (-4°F to 140°F)

Type of protection: IPX0

Relative humidity: Operation: max. 80 % up to 31 °C (87 °F). linear decreasing to 50 % at 40 °C (104 °F); Storage: <80%

Operating height above sea level: Maximum 2000 m (7000 ft)

Weight: 170 g

Dimensions (length x width x height): 121 mm x 65 mm x 35 mm

Automatic switch-off: after 15 minutes of inactivity

Safety: This measuring device is designed for indoor use and complies with overvoltage category CAT III (600 V).

Measuring ranges

DC voltage (V DC): 200 mV~600 V

AC voltage (V AC. 50 / 60 Hz): 200 mV~600 V

Direct current (A DC): 200 µA~10 A

Alternating current (A AC): 200 µA~10 A

Resistance (Ω): 200 Ω~20 MΩ

Scope of delivery

• 1 x Multimeter

• 1 x Safety measuring lines with test probes

• 2 x AAA battery

• 1 x Quick guide

Details

Manual
