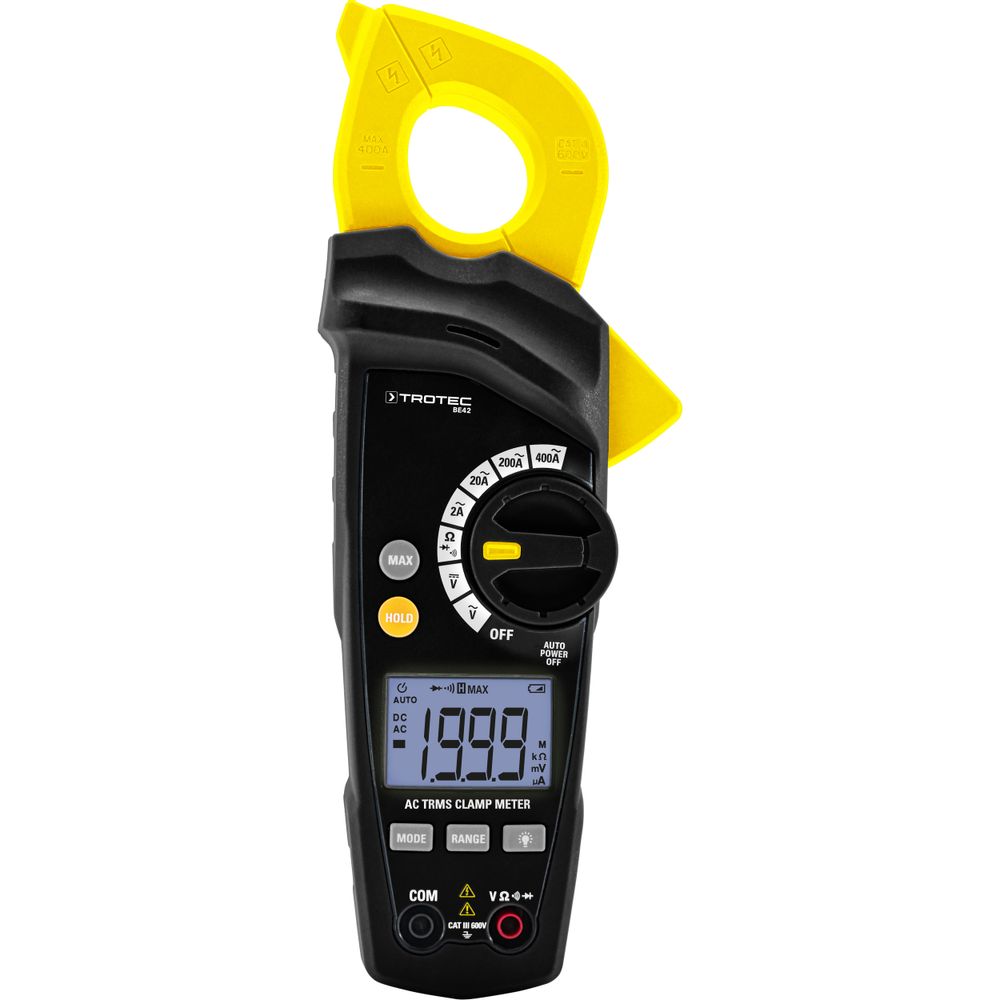

Trotec BE42 True RMS 전류 클램프 (600 V/400 A/ 20 MΩ; CAT III 600 V)

Weight: 287 g (incl. batteries)

Dimensions (length x width x height): 217 x 80 x 38 mm

Max. diameter of conductor approx. 28 mm

Display: LSC (2000 counts)

Measuring rate: 2 per second

Input resistance (V AC and V DC): 10 MΩ

Max. input value alternating current: 400 A

Max. input value voltage (AC and DC): 600 V AC/DC

Max. input value resistance; diode; continuity: 250 V AC/DC

Frequency range alternating current: 50/60 Hz (AAC)

Frequency range AC voltage: 50–400 Hz (VAC)

Ambient conditions: 5°C to 40°C (41°F to 104°F)

Storage conditions: -20°C to 60°C (-4°F to 140°F)

Relative humidity: max. 80 % RH at 31 °C (87 °F). decreasing linearly up to 50 % RH at 40 °C (104 °F)

Type of protection: IP20

Batteries: 2 x 1.5 V AAA

Overvoltage protection: Category lll 600 V

Automatic switch-off: after 15 minutes

Measuring range

AC voltage (V/AC): 2 V~600 V

DC voltage (V/DC): 200 mV~ 600V

Alternating current (A/AC): 2 A~400A

Resistance(Ω): 200 Ω~ 20 MΩ

Function:

+ Diode measurement: Test voltage: approx. 2.5 V;  Test current: approx. 0.6 mA

+ Continuity check: Acoustic signal at ≤ 100 Ω;  Acoustic signal possible at 20 Ω – 150 Ω;  No acoustic signal at > 150 Ω

Scope of delivery

• 1 x device

• 1 x Red measuring cable

• 1 x Black measuring cable

• 3 x 1.5 V battery AAA

• 1 x manual
