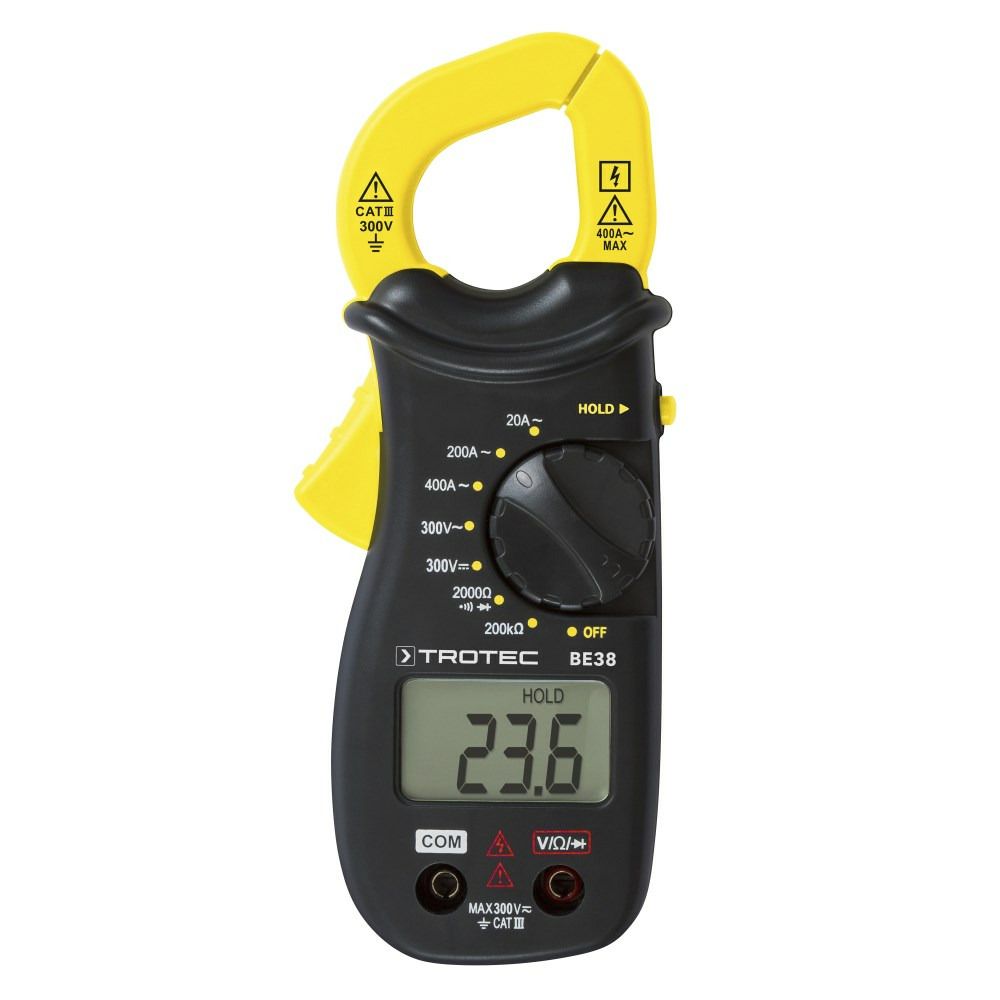

Trotec BE38 전류 클램프 (400 A / 300 V / 200 kΩ; CAT III 300 V)

Weight: 155 g (incl. batteries)

Dimensions (length x width x height): 148 x 27 x 60 mm

Max. diameter of conductor: approx. 25 mm

Measuring rate: 3 per second

Input resistance (V AC and V DC:) 9 MΩ

Frequency range alternating current: 50/60 Hz (AAC)

Frequency range AC voltage: 40 - 400 Hz (VAC)

Ambient conditions: 0 °C to 40 °C with up to 75 % RH

Storage conditions: -20 °C to 60 °C with up to 85 % RH

Battery: 3x 3 V CR2032 button cell batteries

Overvoltage protection: Category lll 300 V

Type of protection: IP20

Measuring range Resolution Accuracy

AC voltage

300 V         1V        ± (1.2 % + 3 digits)

DC voltage

300 V         1V         ± (1.2 % + 3 digits)

Alternating current

20 A        10 mA ± (3.0 % + 5 digits)

200 A        100 mA ± (2.5 % + 5 digits)

400 A        1 A          ± (2.5 % + 5 digits)

Resistance

2000 Ω       1 Ω          ± (1.2 % + 2 digits)

200 kΩ      100 Ω ± (1.5 % + 2 digits)

Scope of delivery

• 1 x clamp meter BE38

• 2 x safety measuring line with test probe

• 3 x button cells 3 V CR2032

• 1 x manual
