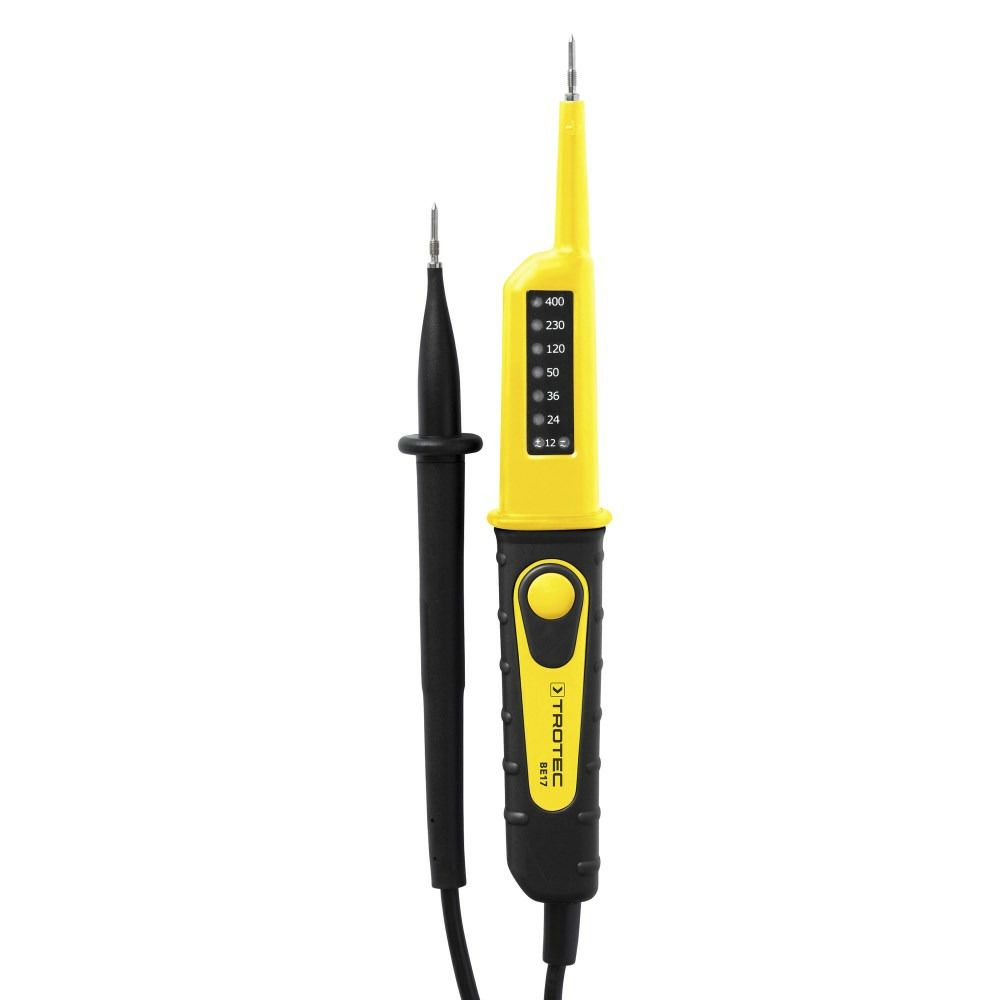

Trotec BE17 전압 테스터 (12 – 400 V; CAT III 400 V)

Voltage indication: 12/24/36/50/120/230/400 V AC/DC

Display tolerance: -30 % to 0 % of the displayed value

Voltage detection: automatically

Polarity indicator: + / - / ~

Display delay: < 0.1 s (LED)

Frequency range: 50 / 60 Hz

Power input: appro. 10.0 W for 400 V

Current peaks:Is = 1 s <0.2 A / 5 s <3.5 mA

Measuring time: 5 s <230 V AC/DC. 3 s <400 V AC/DC

Maximum permissible measuring time for voltages: duty cycle = 30 s

Recovery time: 10 min

LED display from: approx. 6 V AC/DC

Operating temperature: -10 °C to +55 °C

Relative humidity: 85 % max.

Overvoltage category: CAT III – 400 V

Dimensions: 240 x 26 x 45 mm

Weight: 130 g

Scope of delivery

• 1 x Device BE17

• 1 x Test probes set for measuring sockets

• 1 x Quick guide
