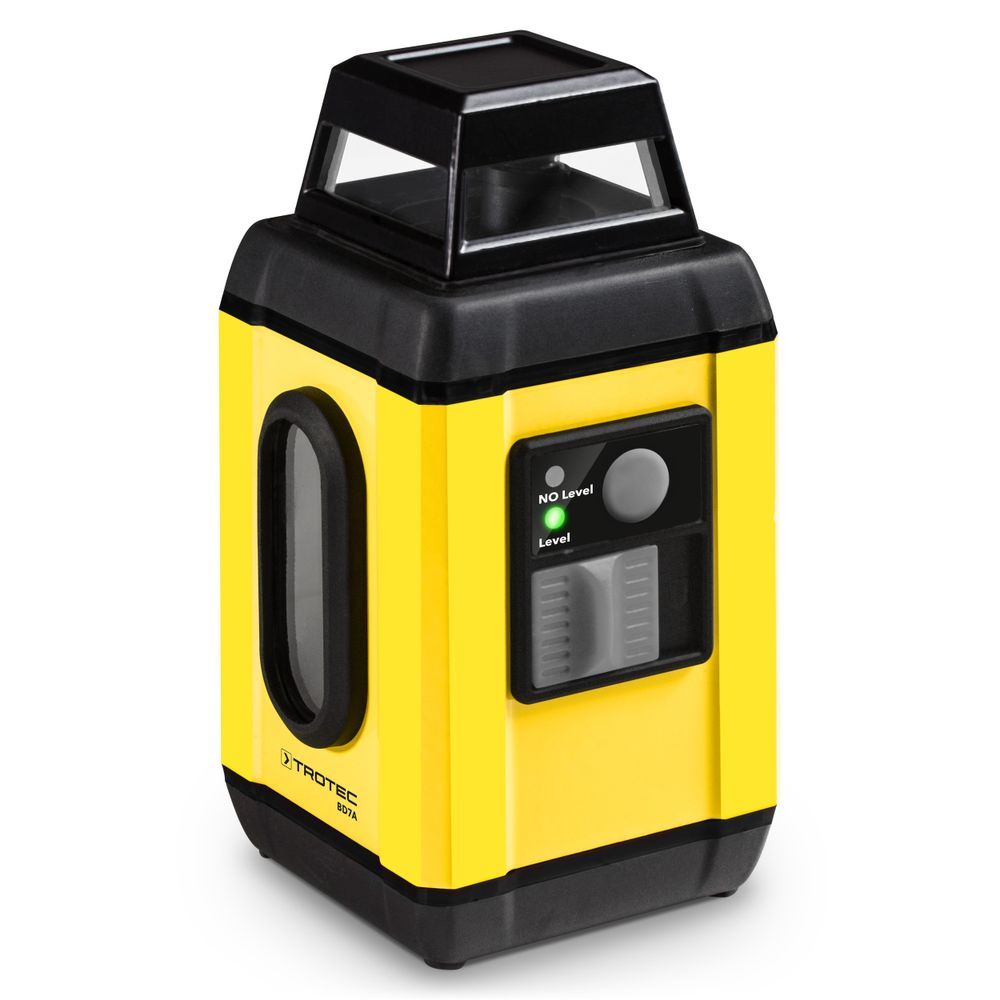

Trotec BD7A Rotational Laser (±3°)

  • 생산업체:Trotec
    Model: BD7A
    P/N: 3.510.205.152
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Nivellierung:

Nivellierungsbereich [°]: ±3°

Laser:

Accuracy – laser: ±0.8 mm/m (at 0 °)

Accuracy – laser: ±1 mm/m (at ≤3 °)

Range [m]: 10 m

Laserfarbe: rot

class: 2

output < [mW]: 1

wavelength [nm]: 650

Device control:  Push buttons: ✓

Housing design:  Metal: ✓

Type of protection:  IP40: ✓

Power supply:

Internal (battery): 1 x 3.7 V Li-ion battery integrated

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 40

Storage - min. temperature [°C]: -20

Storage - max. temperature [°C]: 70

Storage - max. relative humidity (non-condensing) [%]: 80

Functions and features:

Cardanic automatic levelling: ✓

Intuitive operation: ✓

Projection of individual or cross lines (360° horizontal, 90° vertical): ✓

Laser locking function (transport protection) and possibility of inclination: ✓

Optical warning outside the automatic levelling range: ✓

¼ inch tripod thread: ✓

Multi-functional support arm: ✓

Individual/total activation of the integrated lasers: ✓
