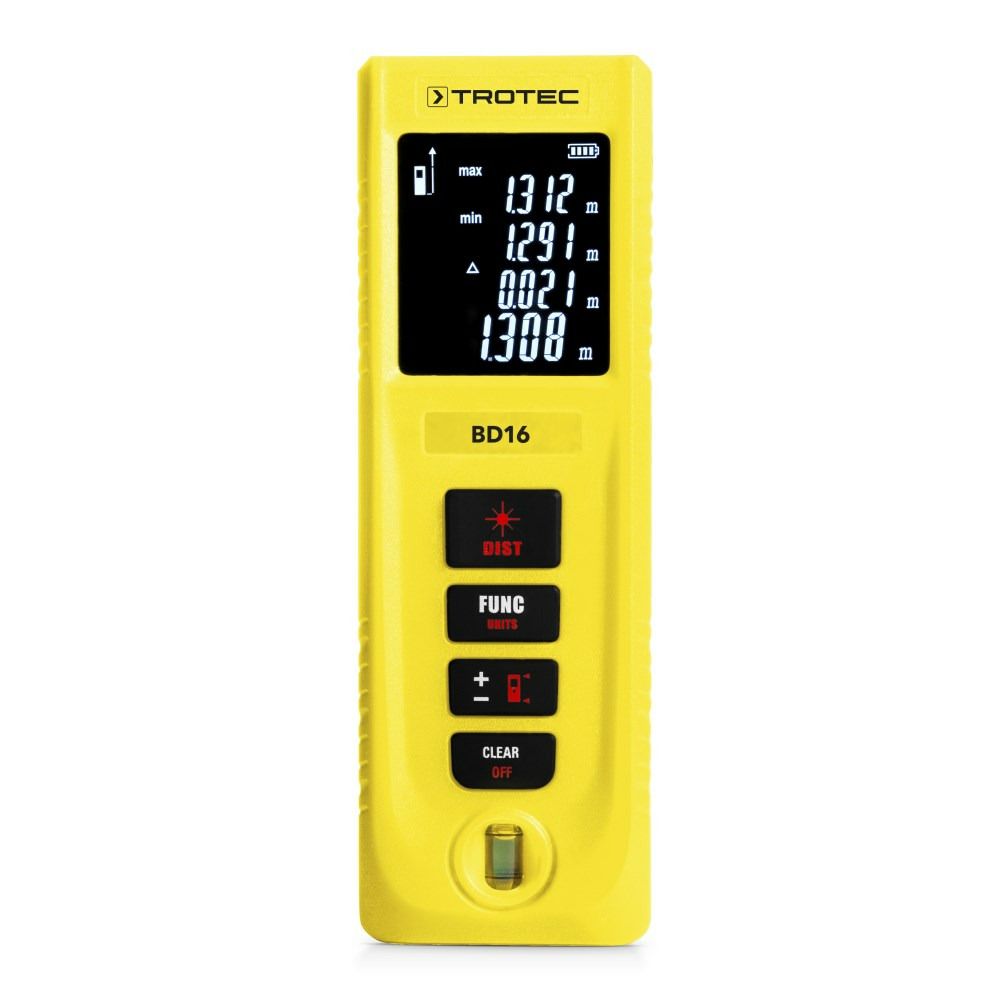

Trotec BD16 Distance meter (0.05~40m; ± 2 mm)

  • 생산업체:Trotec
    Model: BD16
    P/N: 3.510.205.154
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Distance measurement:

Min. measuring range | Distance measurement: 0.05 m

Min. measuring range [m]: 0.05

Max. measuring range [m]: 40

Min. measuring range [ft]: 0.16

Max. measuring range [ft]: 131

Resolution: 1 mm

Typical measuring tolerance: ± 3 mm

Laser:

Ø of the laser point at distance 10 [mm]: 10

Ø of the laser point at distance 20 [mm]: 12

Ø of the laser point at distance 40 [mm]: 20

class: 2

output < [mW]: 1

Memory organisation:  Recall of previous measurements: 10

Device control:  Push buttons: ✓

Housing design:  Plastics: ✓

Type of protection:  IP54: ✓

Power supply:

Internal (battery): 2 x 1.5 V, AA

Measurements per battery set: ~ 5.000

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 40

Storage - min. temperature [°C]: -20

Storage - max. temperature [°C]: 70

Details

Manual
