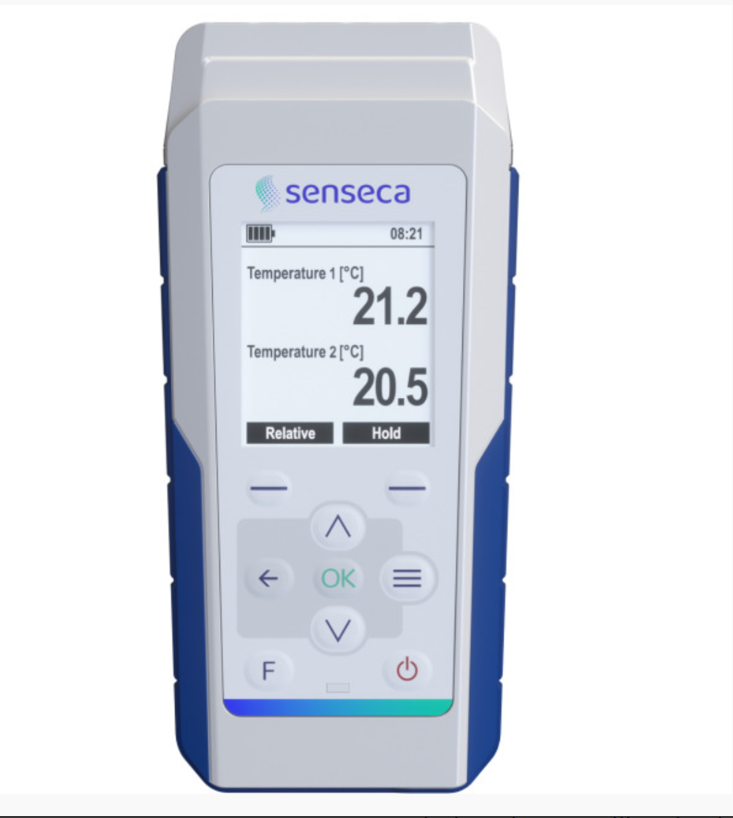

Senseca PRO 135.2 온도계 (with data logger, 2CH)

Version: With data logger

Accuracy:

±(0.2 °C + 0.2% of measured value) ± 1 digit (J, K, N, T, E)

±(0.5 °C + 0.4% of measured value) ± 1 digit (S, B, R)

Auto power off:

Yes, user configurable

Automatically disabled if external power is connected

Battery autonomy: > 150 h typ. continuous operation

Channels: 2 / Miniature female flat-pin TC connectors

Clock: User settable RTC ; Max. drift 1 min/month @ 25 °C

Cold junction accuracy: ±0.3 °C

Dimensions: 170 x 78 x 38 mm

Housing material: ABS, TPE (side protection), Polyester (front panel)

Logging interval: 1, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 20, 30 min / 1 hour (only PRO 135)

Logging type: Automatic with manual or scheduled start/stop (only PRO 135)

Long-term drift: ±0.1 °C/year

Measurement rate: 4 meas/s

Operating conditions: -5…50 °C / 0…85 %RH non-condensing

PC connection: USB C / Mass Storage Device (only PRO 135)

Power consumption: 20 mA typ.

Power supply: 4 x AA alkaline batteries

External: 5 Vdc via USB C (power adapter or PC USB port)

Protection degree: IP 67 (except probe connection)/ IK 04

Storage capacity:

Up to 1 million data sets, file system based

Each data set includes date/time stamp and measurement

Data are stored in CVS files (only PRO 135)

Storage temperature: -25…65 °C (without batteries)

User interface: Multilingual (de, en, it, fr, es)

Weight: 320 g approx.

Display: 140 x 160 dot matrix backlit LCD / Visible area 42 x 50 mm

Multiple choice of measurement screens:

Large digit single value

Multi-row

Statistical info (Min/Avg/Max)

Chart view

Measuring range K:

-220.0…+1372.0 °C / -364.0…+2501.6 °F

J: -200.0…+1100.0 °C / -328.0…+2012.0 °F

N: -200.0…+1300.0 °C / -328.0…+2372.0 °F

S: -50.0…+1750.0 °C / -58.0…+3182.0 °F

T: -200.0…+400.0 °C / -328.0…+752.0 °F

E: -60.0…+850.0 °C / -76.0…+1562.0

Resolution: 0.1 °C / 0.1 °F or 1 °C / 1 °F depending on TC type (see measuring ranges)

Alarm function: CH1, CH2, DIF, sound & light

Current supply: 4 batteries (Mignon AA/LR6) or via USB socket

Data logger: Up to 1 million data sets, file system based

Measuring input: 2x thermocouples type J, K, N, S, T, B, E, R

Output: USB jack type C

Probe connections: 2 sockets for 2-pin standard flat plugs

Protection type: IP67 (except sensor input)

Scope of delivery: incl batteries, short manual

Probe Option
