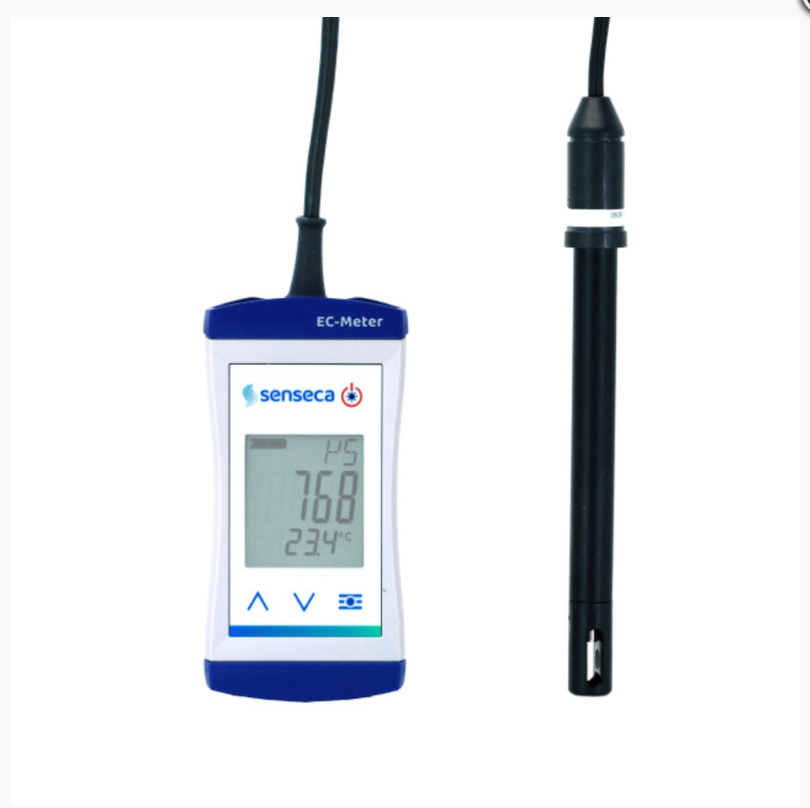

Senseca ECO 522-WPL3-L01 Waterproof universal conductivity measuring device (0 ... 2000 µS/cm, 0.00 ... 20.00 mS/cm, 0.0 ... 100.0 mS/cm)

  • 생산업체:Senseca
    Model: ECO 522-WPL3-L01
    P/N: 487059
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Set-Option: Device, measuring cell LF 202, 2 pole graphite, in suitcase GKK1002, factory calibration WPL3

Additional functions: Automatic measuring range shifting, automatic temperature compensation

Connections: Fixed 2-pole measuring cell with integrated temperature sensor

Dimensions: 108 x 54 x 28 mm

Display: 3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button

Housing material: Break-proof ABS housing

Power supply: 2x AA battery, >1000 h battery life

Protection type: IP67

Sensor: 2-pole measuring cell, Ø 12 mm (stainless steel 1.4404, 1.4435), cable 1.2 m

Weight approx.: 230 g

Accuracy

Conductivity: Typ. ±1 % of mv ±0.5 % FS

Temperature: ±0.3 °C

Measuring range

Conductivity:

0 ... 2000 μS/cm

0.00 ... 20.00 mS/cm

0.0 ... 100.0 mS /cm

TDS:

0 ... 2000 mg/l

Salinity (PSU):

0.0 ... 50.0 g/kg water

Temperature:

-5.0 ... +105.0 °C

Cable: Measuring cell with 1.1 m cable, permanently connected

Current supply: 2 x AA batteries

Measuring cell: 2-pole graphite measuring cell

Measuring ranges: 0 ... 2000 µS/cm, 0.00 ... 20.00 mS/cm, 0.0 ... 100.0 mS/cm

Range of application: Device: -20 ... +50 °C, measuring cell: -5 ... +80 °C (short time 100 °C)

Scope of delivery: Device incl. measuring cell, manual, battery, test protocol

Details

 Datasheet


Manual
