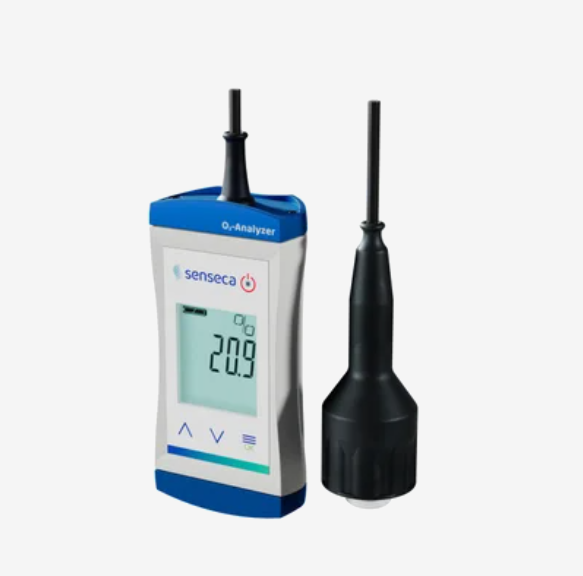

Senseca ECO 410T-35 O₂ 가스 측정기 (0.2 ... 35%O₂)

Version: Device with fix mounted cable and sensor protection sleeve, exchangeable sensor, MOD-calc. NITROX

Set-Option: Instrument, battery, manual, ESA 369 + ZOT 369, suitcase GKK 252

Connections: Thread M16x1, 3.5 mm audio plug socket

Dimensions: 108 x 54 x 28 mm (H x W x D) excl. sensor

Display: 3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button

Housing material: break proof ABS, screw locked battery compartment

Measurement rate: 1 meas/s

Measuring range: Oxygen concentration:

ECO 410-35: 0.0 ... 100.0 vol. % O₂, recommended for 0.2 ... 35 % vol. % O₂ (reduced precision beyond)

Standard for gas at sport diving, protection gases at raised CO2 levels and may more

Resolution: 0.1 vol. % O₂

Nominal temperature: 25 °C

Operating conditions: 0..+45 °C; recommended 5..+30 °C: optimized temperature compensation in this range: 0..+95 % r.H. (short time condensing)

Power supply: 2*AA batteries (included), operating time > 3000 h ; 4 level battery status indicator,

Low battery indication: "BAT LO".

Auto power off: function, configurable; Precision adjusted to ambient air, constant conditions for measurement ECO 410-35:

Sensor:

GOEL 370:

< 35 vol. % O₂: -0.2 … +0.35 vol. % O₂ 35…100 vol. % O₂: not specified

Sensor life time at 20.9 vol. % O2 ca 2 years

Protection type: IP65 / IP67, Sensor IP54

Response time: 90% in < 10 sec., depending on temperature

Sensor Cable: 0.95 m, audio plug, elastic sensor protector

Storage temperature: -20..+50 °C

Weight: 175 g incl. sensor

Cable length: 0.95 m PVC cable with 3.5 mm sensor plug

Current supply: 2 x AA batteries

Sensor: GOEL 370: 0 ... 100 % Vol. O₂, recommended 0.2 ... 35 Vol.-% O₂ (beyond reduced precision)

Working temperature: 0 ... 45 °C
