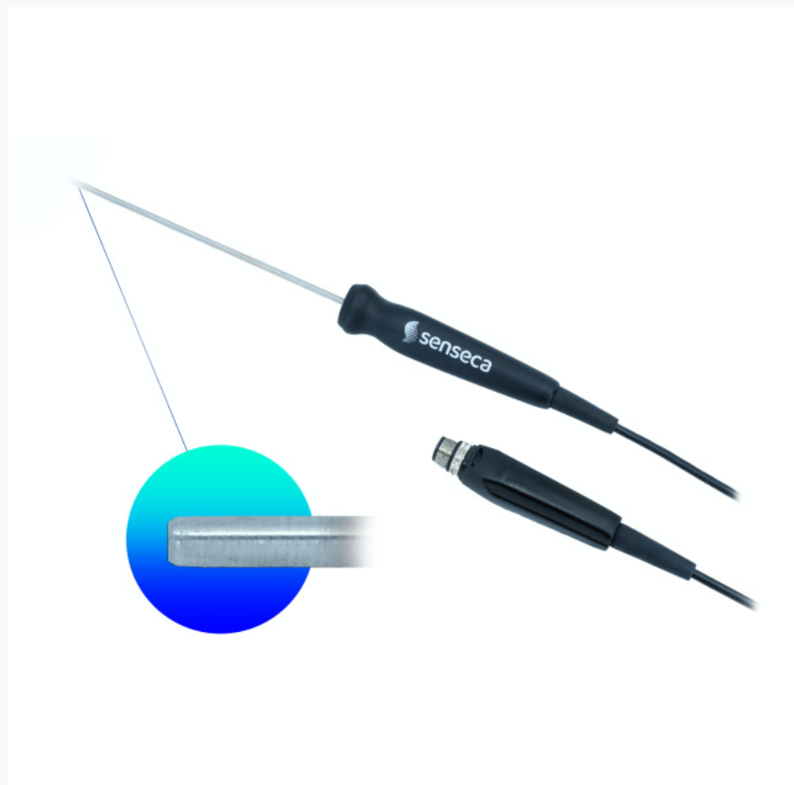

Senseca DX 115-00-300-L02 Digital Pt100 immersion probe, large handle (- 196...+ 500 °C, 0.01°C)

  • 생산업체:Senseca
    Model: DX 115-00-300-L02
    P/N: 486229
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Applications: Immersion

Dimensions: Stem: Ø3 mm, L=130/230/300 mm (other lengths on request)

Handle length: 98 mm

Cable: Ø4 mm, L=1. 2 or 5 m

Materials: Stem: AISI 316

Handle: Polyamide (PA6-GF30)

Cable: PVC (-20...+105 °C)

Output: UART (TTL 3.3V)

Power consumption: <1 mA typ.

Power supply: 3.3…6 Vdc

Protection degree: IP67

Response time: 3 s

Weight: 110 g approx. with 2 m cable

Connection: 4-pole M12

Measuring range: - 196...+ 500 °C

Resolution: 0.01 °C

Accuracy: ±0.05 K @ 0°C, 0.1 K in the range of 0...100°C, resolution 0.01°C

Cable and length: 2 m PVC cable, -20 ... +105 °C

Calibration: Factory adjustment, exchangeable

Diameter probe tube: Ø3 mm

Measuring element: Pt100, wire wound, high precision

Model: Immersion probe, blunt

Probe length: 300 mm

Scope of delivery: Device in black protective bag 460x85x55 mm with velcro closure, Quickstart
