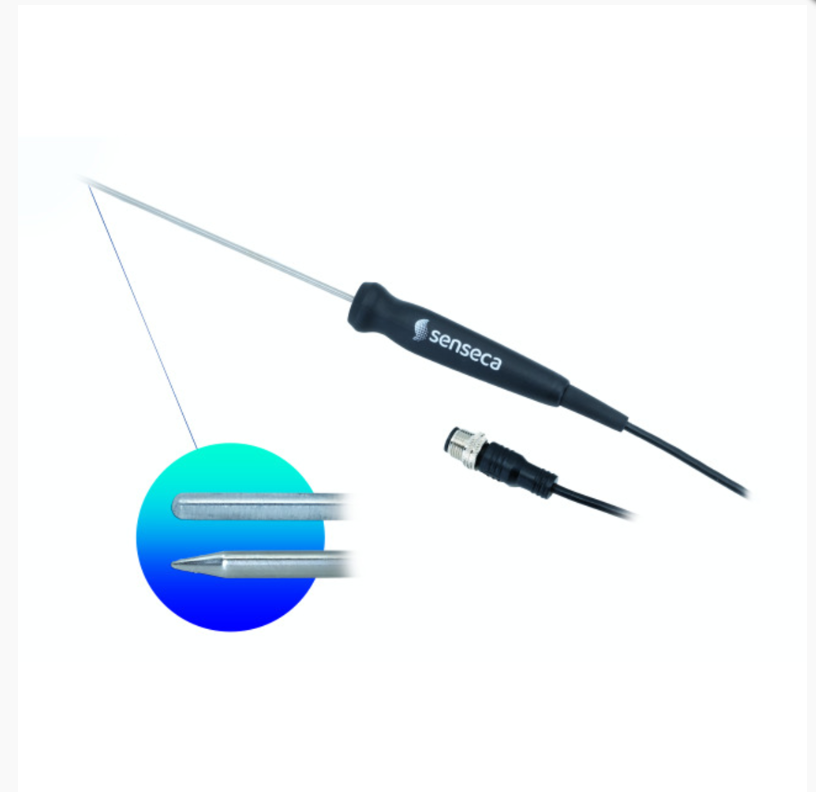

Senseca AX 111-I3-AA-150-L01-P-M12 Precision analog 4-wire Pt100 probe (-50 ... +250 °C)

Applications: Immersion, insertion

Dimensions: Stem: Ø3 mm, L=150/300 mm (other lengths on request)

Cable: Ø4 mm, L=1,.2 or 5 m

Materials: Stem: AISI 316

Handle: Polyamide (PA6-GF30)

Cable: PVC (permanently up to +80 °C / short-term approx. 2 hours per application up to +105 °C)

Measuring range: -50 ... +250 °C

Output: Pt100 4-wire

Protection degree: IP67

Response time : water 0.4 m/s < 2 s, air 2 m/s approx. 40 s

Sensor: Pt100 (wire wound)

Weight: 110 g approx. with 2 m cable

Accuracy: Class AA, (valid range 0...+150°C)

Connection: M12 4-pole male A-coded or loose ends

Cable and length: 1 m PVC cable, -20 ... +105 °C

Diameter probe tube: Ø3 mm

Probe length: 150 mm
