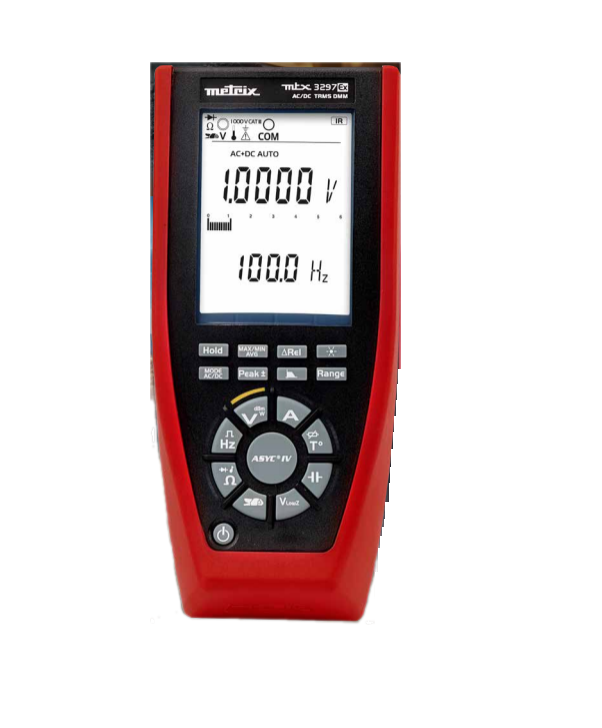

METRIX MTX 3297EX TRMS digital multimeter with intrinsic safety (0.001mV~1000.0V, 0.01µA~10.00 A, Ex/IEC Ex certified)

  • 생산업체:METRIX
    Model: MTX 3297EX
    P/N: MTX3297
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

DC, AC and AC+DC voltages

V DC:

Measurement range: 0.001 mV to 1000.0 V DC

Uncertainty: 0.05 % + 25 cts

V AC, V AC+DC

Measurement range: 0.001 mV to 1000.0 V AC or AC+DC

AC, AC+DC uncertainty / Bandwidth: 0.05 % + 25 cts. 0.05% + 40 cts / 100 kHz

VLOWZ

Measurement range: 0.01 mV to 1000.0 V

Uncertainty / Bandwidth: 0.05 % + 25 cts / 300 Hz

Qualified measurement range in Ex zones: 0.001 mV to 65.00 V

DC, AC & AC+DC currents (protection by fuse)

A DC

Measurement range: 0.01 µA to 10.00 A DC (max. 20 A/30 s)

Uncertainty: 0.8 % + 20 cts

A AC, A AC+DC

Measurement range: 0.01 µA to 10.00 A AC or AC+DC (max. 20 A/30 s)

Uncertainty / Bandwidth: 1.0 % + 25 cts / 20 kHz

Qualified measurement range in Ex zones: 0.01 µA to 5.00 A

with external sensor (clamp): up to 6,000 A depending on sensor, transformation ratio 1, 10, 100, 1,000 mV/A

Frequency

Hz

Measurement range: 10.00 Hz to 200.0 kHz (for V), 20.00 kHz (for A)

Uncertainty: 0.1 % + 1 ct

Resistance & Continuity, Diode

Measurement range: 0.00 Ω to 60.000 MΩ

Uncertainty: 0.1 % + 20 cts

Continuity: Audible signal < 30 ± 5 Ω / < 5 V, I < 1.1 mA

Diode test: 3.000 V, 1 % + 30 cts / U < 5 V, I < 1.1 mA

Capacitance

nF/µF/mF

Measurement range: 0.100 nF to 60.000 mF

Accuracy/resolution: 1 % + 10 cts

Temperature Pt100/Pt1000

°C/°F

Measurement range: -200.0 °C to +800.0 °C

Uncertainty: 0.1 % ± 1.5°C

Other measurements

Main measurement: Conductance

Secondary measurements: Duty cycle, pulse width, resistive power (U²/R), dBm

Functions

MAX/Min/AVG, Peak+/Peak-: 100 ms on all the main measurements except Peak (1 ms)

ΔREL, ΔREL/R: Differential value, relative value

PWM filter: 4th-order 300 Hz low-pass filter

General specifications

Display: Double 60,000-count LCD screen with 3-level backlighting

Power supply: 4 x AA/FR6 Li-FeS2 Ex-qualified batteries / Battery life 350 h

Compliance outside Ex zones: IEC 6010-2-033 1000V CAT III/600V CAT IV, EN 61326-1 Class B

Ingress protection / Environment: IP 67* / Storage -20°C to +70°C, Use -10°C to +55°C

Mechanical specifications: Dimensions (L x W x H) : 196 x 90 x 47.1 mm – Weight: 715g


Delivered with 1 set of 2 straight/elbowed cables 1.5m long, 1 set of test probes, 1 Quick Start Guide  in 18 languages including the information (link & QR code) for downloading the User’s Manual free  of charge, 1 safety manual, 1 set of 4 x 1.5V AA batteries/FR6 Li-FeS2 Ex/IEC Ex-qualified batteries  (pre-installed in the instrument).

Details

 The MTX 3297Ex multimeter is an ASYC IV series 60,000-point TRMS digital multimeter designed for use in potentially explosive Ex zones and is Ex/IEC Ex certified:

- IIC (gas) 0,1,2

- IIIC (dust) 20,21, 22

- Mines M1

The most demanding criteria for permanent use in all Ex zones.

This comprehensive intrinsically safe portable multimeter measures voltage, current, resistance, capacitance, frequency, temperature and diodes. Outside the Ex zones, the MTX 3297Ex is a high-performance 1000V CAT III / 600V CAT IV industrial multimeter. The MTX 3297Ex comes complete with ATEX-specific batteries and fuse.
