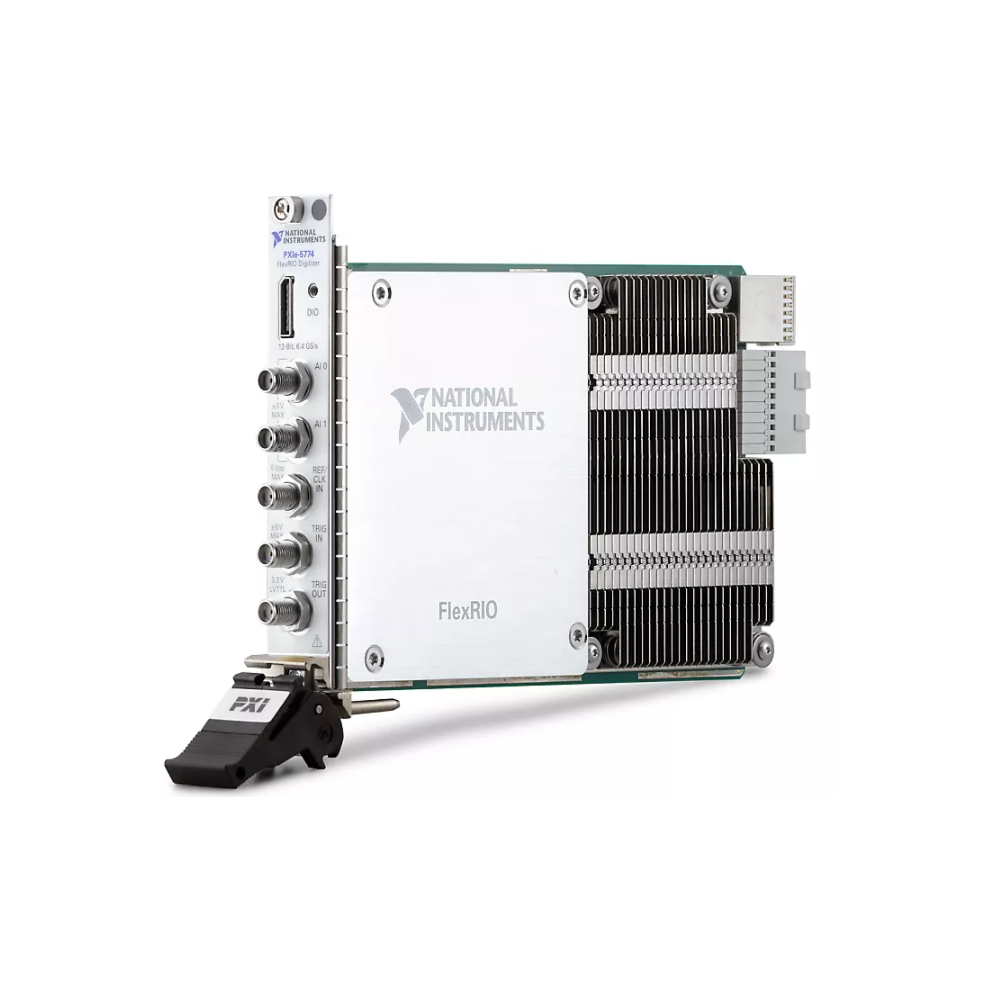

NI PXIe-5774 PXI FlexRIO Digitizer (2 Channel, 6.4 GS/s, DC, 3 GHz, Kintex UltraScale KU040)

Number of Voltage Input Channels: 2

Maximum Sample Rate: 6.4 GS/s

Analog Input Resolution: 12 bits

Analog Input Coupling: DC

Analog Input Bandwidth: 3 GHz

Analog Input Voltage Range: 200 mVpp 1 Vpp

FPGA: Kintex UltraScale KU040

Dynamic RAM (DRAM): 4 GB


Details

Combines A/D converter technologies with Xilinx FPGAs for applications that demand real-time signal processing and high-performance analog input.

PXI FlexRIO Digitizers feature high-performance analog-to-digital converters with lightweight analog front-ends designed to maximize sample rate, bandwidth, and dynamic range. These modules use FPGAs from Xilinx alongside LabVIEW and Vivado programming options for custom algorithm implementation and real-time signal processing. For applications that require high channel counts, PXI FlexRIO Digitizers use the NI-TClk API and the timing and synchronization capabilities of PXI to achieve sub-sample synchronization between multiple modules in a chassis. These modules also feature an auxiliary I/O connector with GPIO for triggering or digital interfacing and the option for high-speed serial communication.

Datasheet
